The 3300 XL 50 mm probe is designed to withstand the harshest steam turbine DE environments. It can operate continuously and maintain its accuracy at high temperatures up to 200°C (392°F) and can endure intermittent high temperatures up to 250°C (482°F). The 50 mm probe features both a front and rear seal, and together with the High Temperature FluidLoc cable (standard on all 50 mm probes), they prevent moisture from entering the probe tip. Special high-temperature ClickLoc connectors are also standard on the probe and extension cable. Each probe and cable includes connector protectors and a disposable connector protector installation tool to ensure the connectors remain free from contamination. The ClickLoc connector on the probe lead has a removable collar to facilitate routing the cable through tight clearances.

The 3300 XL 50 mm probe is available in straight exit case styles with ½-20 English threads or M14x1.5 metric threads, including a locknut with predrilled safety wire holes. The side exit probe has two ¼-20 mounting holes in the rear of the probe case. For both straight exit and side exit probes, the overall case diameter is 1.99 inches.

Frequently Asked Questions.

1. What is the 330877-80-37-00?

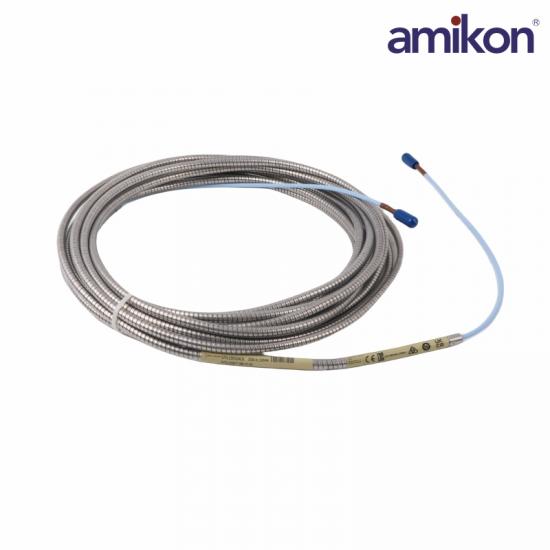

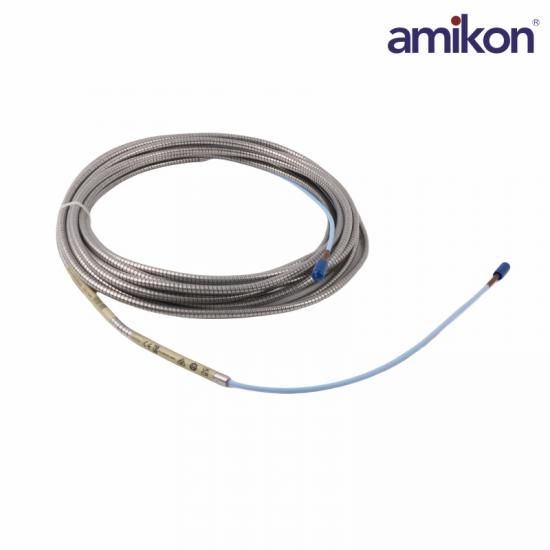

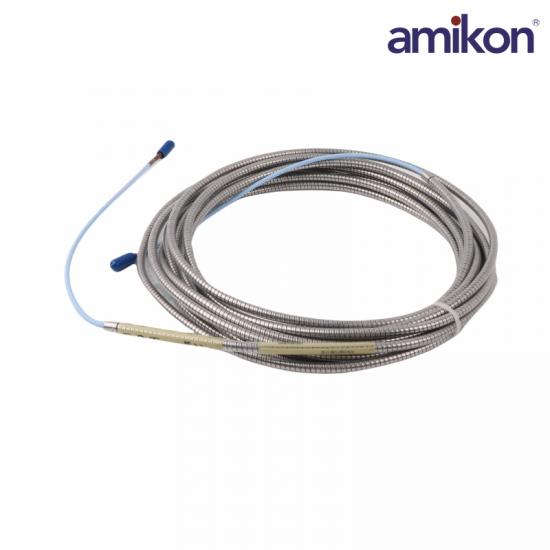

The Bently Nevada 330877-80-37-00 is a 3300 XL extension cable used to connect a proximity probe to a Proximitor® sensor, enabling accurate vibration and position monitoring in rotating machinery.

2. What is the 330877-80-37-00 function of this extension cable?

It extends the distance between the probe and the monitoring system while maintaining signal integrity, ensuring reliable transmission of vibration, position, and Keyphasor® signals.

3. What is the 330877-80-37-00 cable length?

The “-080” option corresponds to an 8.0 meter (26.2 ft) cable length, suitable for medium to long installation distances.

4. Does it have hazardous area approvals?

The “-00” option means no hazardous area approvals are included. Certification must be selected separately if required.

Product Applications

Oil and Gas: Used for monitoring the vibration and shaft displacement of key rotating equipment such as large compressors, pumps, and gas turbines.

Petrochemical: Ensuring the operational stability of large rotating machinery in complex production environments.

Power: Including the monitoring of steam turbine generators in thermal, hydro, and nuclear power plants, using high-precision displacement measurements provided by sensors for predictive maintenance.

Municipal Engineering: Applied to the power systems of water pumping stations and other municipal infrastructure.
