Description：

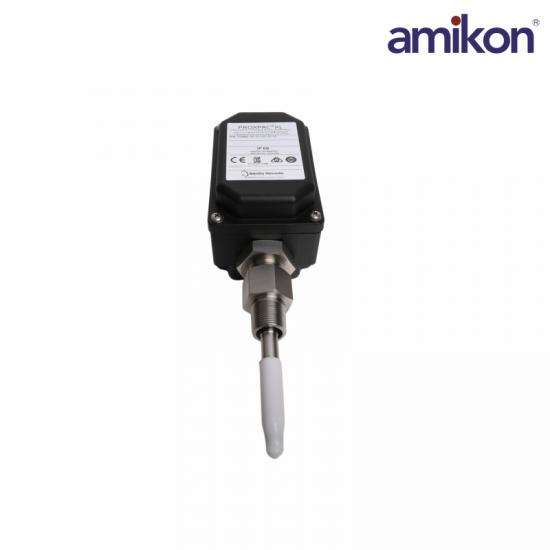

The Bently Nevada 330880-16-00-021-03-02 PROXPAC XL Proximity Transducer is a compact, self-contained proximity transducer assembly that integrates a 3300 XL 8 mm proximity probe, 3300 XL Proximitor® sensor, and protective housing into a single unit. By eliminating the need for a separate extension cable and external Proximitor housing, the PROXPAC XL simplifies installation, reduces wiring requirements, and improves reliability in rotating machinery monitoring systems.

The housing is molded from Polyphenylene Sulfide (PPS) reinforced with glass and conductive fibers, providing excellent mechanical strength, corrosion resistance, and electrostatic discharge protection. Rated Type 4X and IP66, the assembly is well suited for harsh industrial environments where moisture, dust, and corrosive conditions are present. The field wiring connects directly between the monitoring system and the PROXPAC XL assembly, reducing installation time and maintenance requirements.

Specification：

Frequently asked questions

1. What is the Bently Nevada 330880-16-00-021-03-02?

The Bently Nevada 330880-16-00-021-03-02 is a PROXPAC XL Proximity Transducer Assembly that integrates a 3300 XL 8 mm proximity probe and a 3300 XL Proximitor® Sensor into a single compact housing.

2. Does this 330880-16-00-021-03-02 model include a proximity probe?

Yes. The -16 option includes a 3300 XL 8 mm proximity probe without hazardous-area approvals. Customers requiring multiple international approvals can select the -28 configuration instead.

3. What mounting thread does this model use?

The -02 mounting thread option specifies a 3/4-14 NPT thread, providing secure installation for industrial machinery and compatible housings.

4. What is the 330880-16-00-021-03-02 probe penetration length?

The 021 option provides a 2.1-inch (53 mm) probe penetration length.

Product Applications

Power plants (thermal, nuclear, hydro, gas turbine): Large steam turbine generator sets, gas turbines, water turbines, large feedwater pumps, forced draft fans and induced draft fans.

Oil, gas, and refinery (chemical plants): High-pressure centrifugal compressors (such as syngas compressors, natural gas pipeline pressurizers), large catalytic cracking blowers, heavy-duty pumps.

Steel and metallurgical plants: Blast furnace blowers, sintering exhaust fans, high-speed shafts for large converter tilting reducers.

Large paper mills and cement plants: Paper machine drying cylinder drive units, large reducers for cement mills, exhaust fans.
