Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:

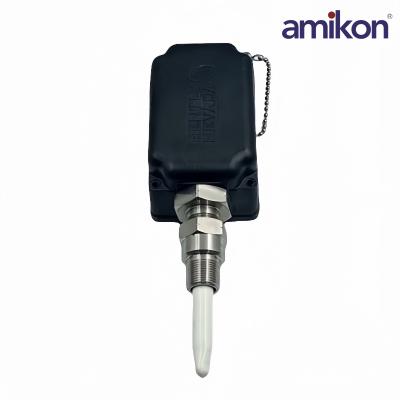

CooPart Number:330881-16-00-307-06-02

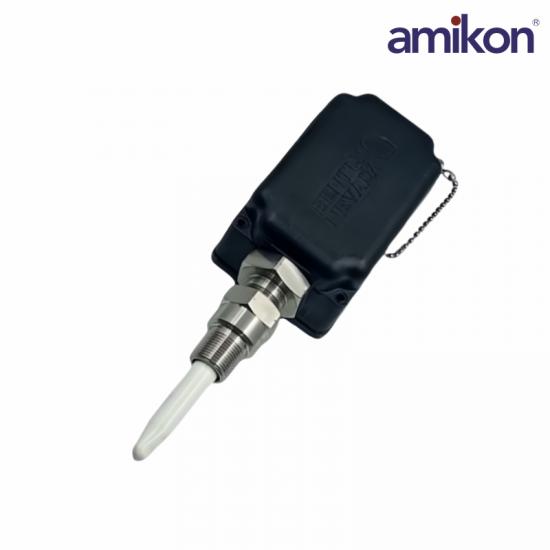

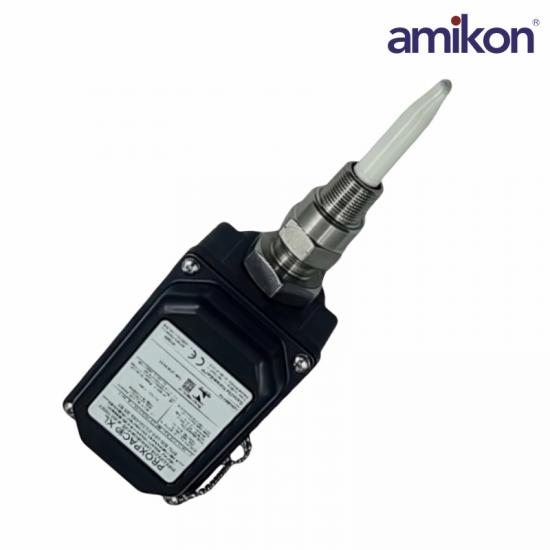

Type:PROXPAC XL Proximity Transducer
16 – Uses a 3300 XL 8 mm eddy-current probe
00 – Integrated housing (no separate extension cable between probe and proximitor)
307 – Probe penetration depth: 307 mm
06 – Output configuration: +5 VDC input, –24 VDC output
02 – Shield grounding at monitor end
Output: –24 VDC
Power: –17.5 to –26 VDC, 12 mA
Sensitivity: 200 mV/mil
Range: 0–2 mm typical
Impedance: ~50 Ω
Temp range: –35°C to +120°C
The design of the PROXPAC XL Proximity Transducer Assembly is similar to our 31000/32000 Proximity Probe Housing Assemblies. The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes. However, the housing cover of the PROXPAC XL Assembly also contains its own 3300 XL Proximitor sensor. This design makes the PROXPAC XL Assembly a completely self-contained proximity probe system, and eliminates the need for an extension cable between the probe and its associated Proximitor sensor. It also eliminates the need for a separate Proximitor housing, as the field wiring connects directly between the monitors and PROXPAC XL Assemblies.
The PROXPAC XL housing is made of Polyphenylene Sulfide (PPS), which is an advanced, molded thermoplastic. This material replaces the steel and aluminum in previous housings offered in the Bently Nevada product line. It also incorporates glass and conductive fibers in the PPS to strengthen the housing and more effectively dissipate electrostatic charges. The PROXPAC XL housing is rated for Type 4X and for IP66 environments and provides extra protection in severe environments.
