Product Number:330881-16-10-105-06-02

A: Probe and Approvals Option

00 – No probe; Proximitor sensor without approvals

01 – No probe; Proximitor sensor with Multiple Approvals

16 – 3300 XL 8 mm probe without approvals

28 – 3300 XL 8 mm probe with Multiple Approvals

B: Standoff Adapter Option (B Dimension)

Order in increments of 10 mm.

Minimum length: 40 mm

Maximum length: 200 mm

Examples:

00 – No standoff adapter

04 – 40 mm

20 – 200 mm

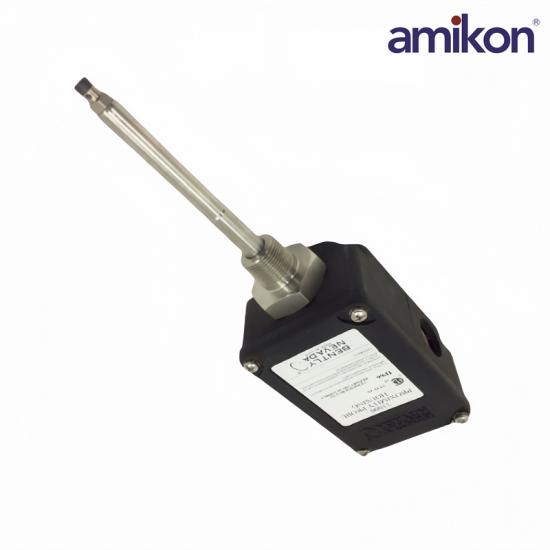

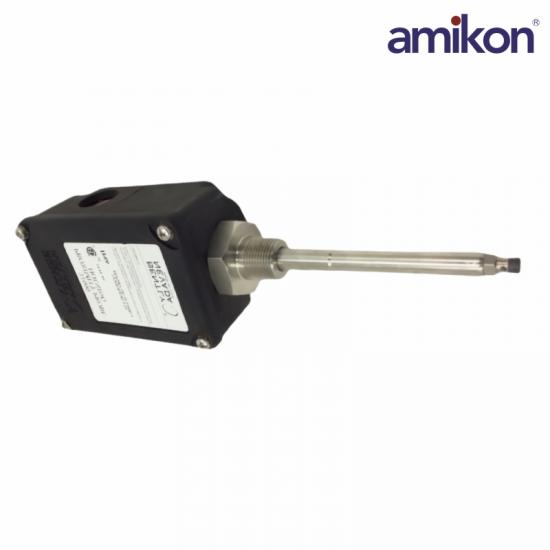

The design of the PROXPAC XL Proximity Transducer Assembly is similar to our 31000/32000 Proximity Probe Housing Assemblies.  The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes.  However, the housing cover of the PROXPAC XL Assembly also contains its own 3300 XL Proximitor sensor.  This design makes the PROXPAC XL Assembly a completely self-contained proximity probe system, and eliminates the need for an extension cable between the probe and its associated Proximitor sensor.  It also eliminates the need for a separate Proximitor housing, as the field wiring connects directly between the monitors and PROXPAC XL Assemblies.

The PROXPAC XL housing is made of Polyphenylene Sulfide (PPS), which is an advanced, molded thermoplastic.  This material replaces the steel and aluminum in previous housings offered in the Bently Nevada product line.  It also incorporates glass and conductive fibers in the PPS to strengthen the housing and more effectively dissipate electrostatic charges.  The PROXPAC XL housing is rated for Type 4X and for IP66 environments and provides extra protection in severe environments.
