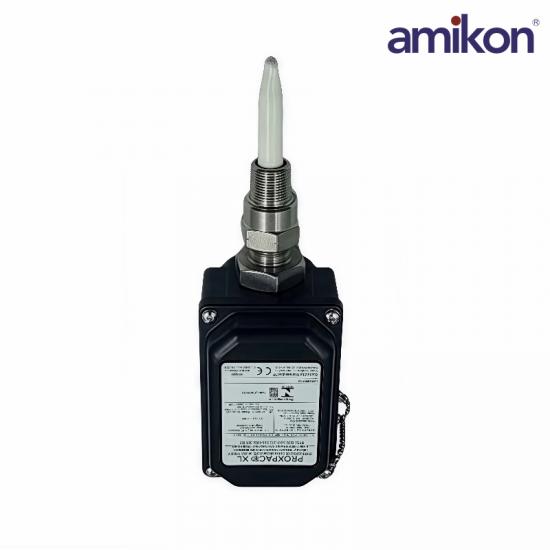

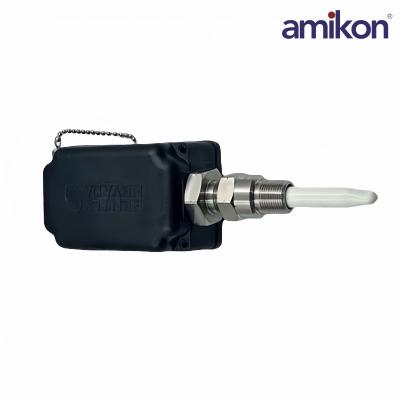

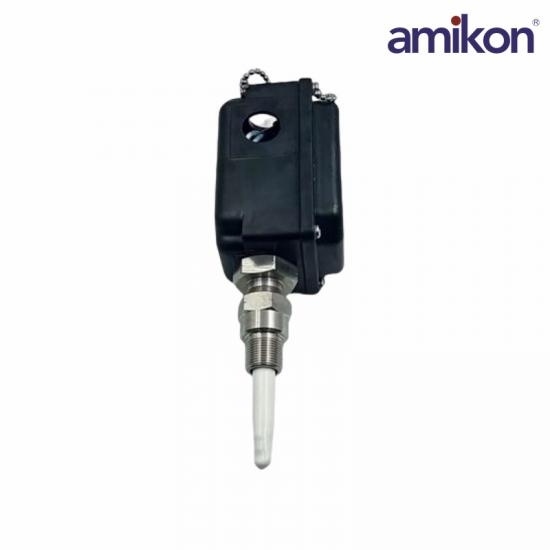

Model Number: 330881-28-05-035-01-02

Series: 3300 XL PROXPAC

Output Resistance: 50 Ω

Recommended Gap Setting: 1.27 mm (50 mils)

Recommended Minimum Distance from Shaft: 50.8 mm (2.0 in)

Recommended Minimum Distance from Other Probes: 76.2 mm (3.0 in)

Probe Tip Material: Polyphenylene sulfide (PPS)

Probe Case Material: AISI 304 Stainless Steel (SST)

Sensor Housing Material: A380 Aluminum

Operating Temperature: -35°C to +177°C (-31°F to +350°F)

The design of the PROXPAC XL Proximity Transducer Assembly is similar to our 31000/32000 Proximity Probe Housing Assemblies.  The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes.  However, the housing cover of the PROXPAC XL Assembly also contains its own 3300 XL Proximitor sensor.  This design makes the PROXPAC XL Assembly a completely self-contained proximity probe system, and eliminates the need for an extension cable between the probe and its associated Proximitor sensor.  It also eliminates the need for a separate Proximitor housing, as the field wiring connects directly between the monitors and PROXPAC XL Assemblies.
