Manufacturer: Bently Nevada

Model:330881-28-05-090-00-02

Weight: 1.44 kg

Input: 3300 XL 8 mm proximity probe with a 1-meter cable length.

Power Supply: -17.5 Vdc to -26 Vdc without barriers; -23 Vdc to -26 Vdc with barriers.

Supply Sensitivity: Less than 2 mV change in output per volt change in input voltage.

Output Resistance: 50 Ω

Nominal Probe Resistance: 7.59 ± 0.50 Ω at 1-meter length.

Frequency Response: 0 to 10 kHz (+0, -3 dB) with up to 305 meters (1000 feet) of wiring.

Deviation from Best Fit Line: Less than ±0.025mm (±1 mil) from 0°C to +45°C.

Target Size: Minimum 15.2 mm (0.6 in) diameter flat target.

Shaft Diameter: Minimum 50.8 mm (2.0 in), recommended minimum 76.2 mm (3.0 in).

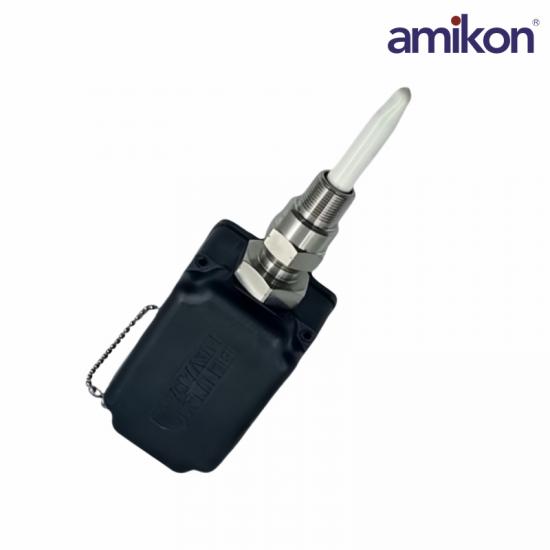

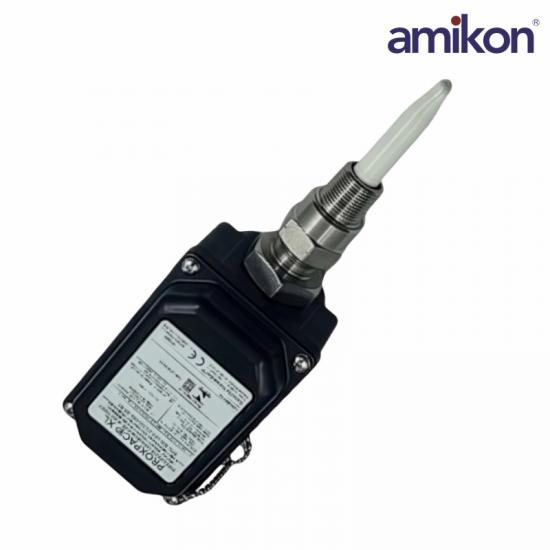

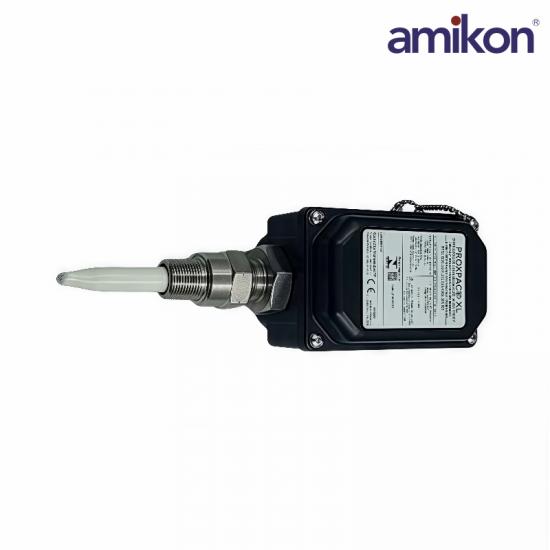

The Bently Nevada 330881-28-05-090-00-02 PRoXPAC XL Proximity Transducer is a highly eficient and rugged proximity probe system.It integrates the 3300 XL Proximitor sensor within a self-contained housing, eliminating the need for extension cables or separate Proximitor housings. Ideal for use in harsh environments, this unit features an advanced Polyphenylene Sulfide (PPS) housing, offering superior strength and electrostatic discharge protection. The PROxPAC XL is built to withstand IP66 and Type 4X rated environments, making it suitable for a wide range of industrial applications.

The PROXPAC XL housing is made of Polyphenylene Sulfide (PPS), which is an advanced, molded thermoplastic.  This material replaces the steel and aluminum in previous housings offered in the Bently Nevada product line.It also incorporates glass and conductive fibers in the PPS to strengthen the housing and more effectively dissipate electrostatic charges.      The PROXPAC XL housing is rated for Type 4X and for IP66 environments and provides extra protection in severe environments.
