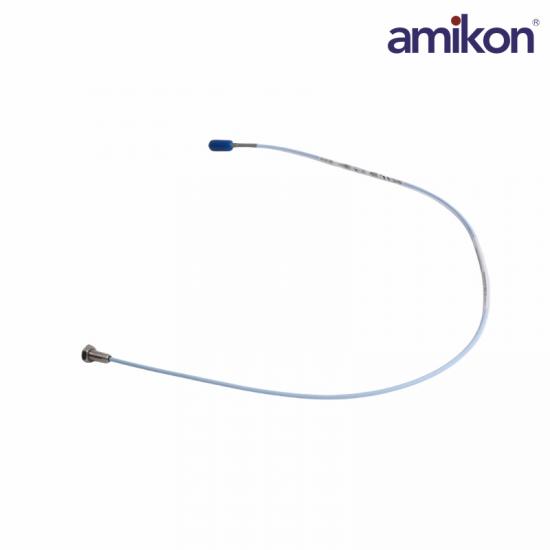

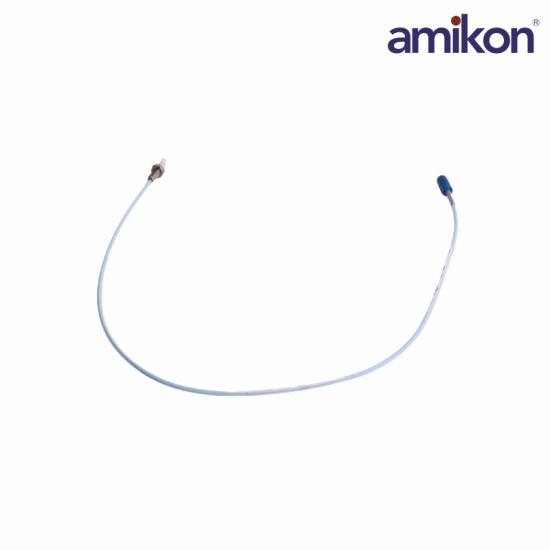

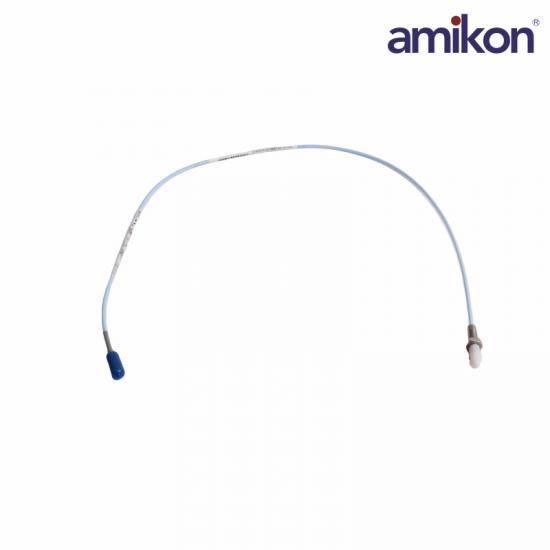

Brand:Bently Nevada

Product Number:330901-00-09-10-02-05

Recommended Torque: Finger tight

Maximum Torque: 0.56 N•m (5 in•lb)

Probe: Approximately 14 to 150 g (0.5 to 5.3 oz)

Extension Cable: 45 g/m (0.5 oz/ft)

Armored Extension Cable: 64 g/m (0.7 oz/ft)

Proximitor Sensor: 255 g (9 oz)

Probe Tip: Material: Polyphenylene sulfide (PPS).

Probe Case: Material: AISI 304 stainless steel (SST).

The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced sideview and small target characteristics give it a shorter linear range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System. The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer System.
