Manufacturer : Bently Nevada

Product Number : 330901-00-15-70-02-05

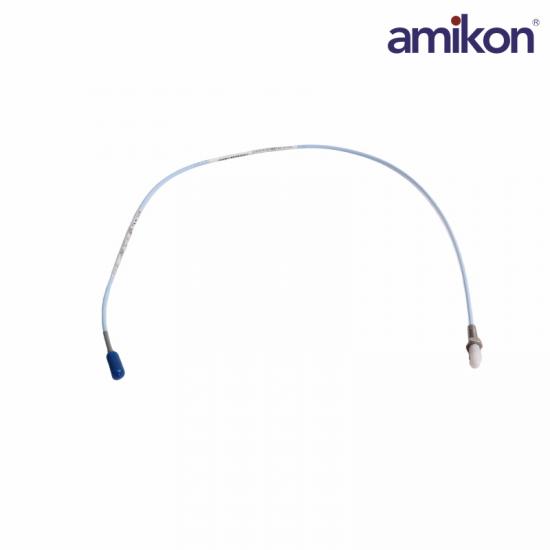

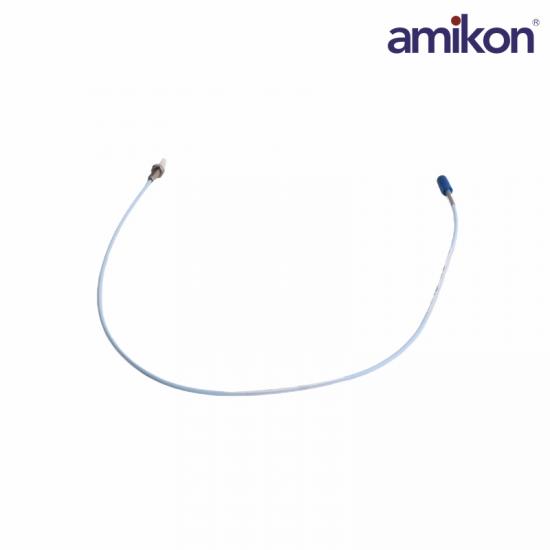

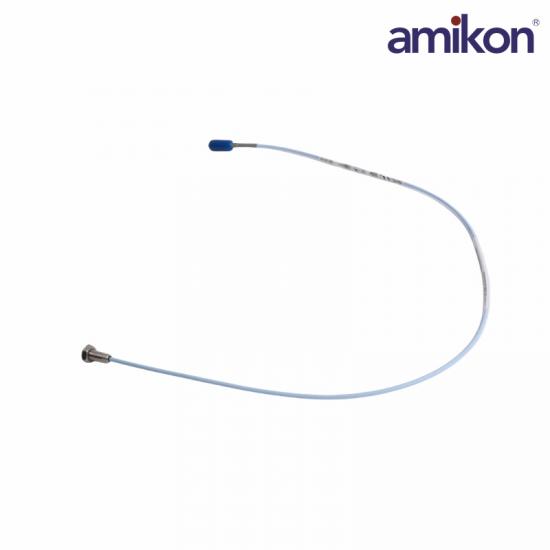

Product Type : Proximity Probes

Made in U.S.A

Can add on Certificate Of Origin (COO)

Unthreaded Length Option : 00 = 0.0 in

Overall Case Length Option : 15 = 1.5 in

Total Length Option : 70 = 7.0 metres (23.0 feet)

Connector and Cable-Type Option : 02 = Miniature coaxial ClickLoc connector, standard cable

Agency Approval Option : CN = Approvals country specific (CN Approvals Option Quick Reference Guide and Field Notification Letter are in the download section)

Probe Case Material : AISI304 stainless steel (SST).

Probe Tip Material : Polyphenylene sulfide (PPS).

Probe Cable Specifications: 75 ? coaxial, fluoroethylene propylene (FEP) insulated probe cable in the following total probe lengths: 0.5, 1, 5, or 7 metres.

Weight : Approximately 14 to 150 g (0.5 to 5.3 oz)

Shipping Weight: 1.5 kg

The 3300 XL NSv Transducer System is designed to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system can utilize the existing probe, extension cable, and monitoring system, with only the 3300 XL NSv Proximitor Sensor needing replacement. However, upgrades from the 3000-series or 7000-series Transducer System require replacing the probe, extension cable, and Proximitor Sensor with NSv components.
