Manufacturer : Bently Nevada

Product No. : 330901-00-40-10-02-05

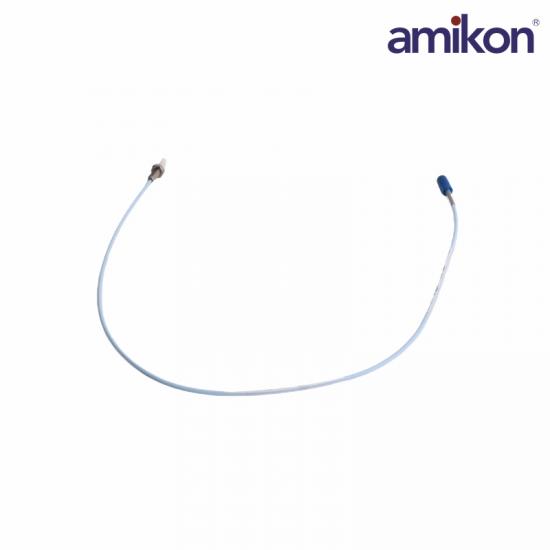

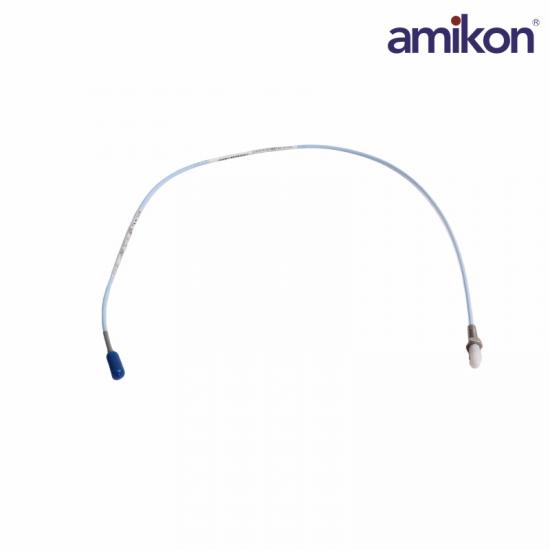

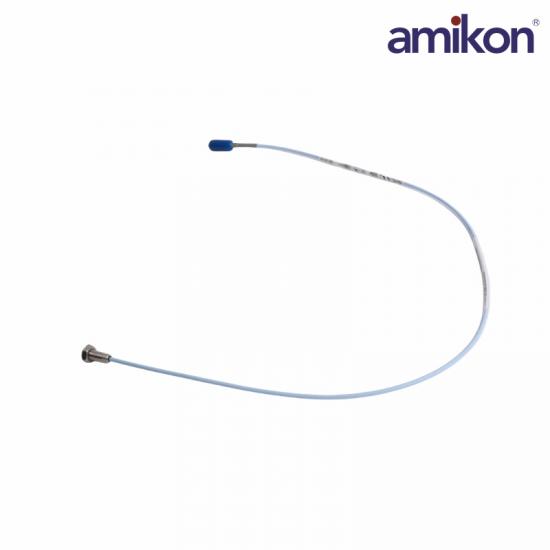

Product type : 3300 NSv Proximity Probes

Made in U.S.A

Can add on Certificate Of Origin (COO)

Unthreaded Length Option: 00 = 0.0 in

Overall Case Length Option: 40 = 4.0 in

Total Length 0ption: 10 = 1.0 meter (39 in)

Connector and Cable Type Option: 02 = Miniature coaxial ClickLoc' connector, standard cable

Agency Approval Option: 05 = Multiple Approvals

Operating Temperature: -34°C to +177°C (-30°F to +351°F)

Storage Temperature: -51°C to +177°C (-60°F to +351°F)

Probe Tip Material: Polyphenylene sulfide (PPS).

Probe Case Material: AISI 304 stainless steel (SST).

The 3300 NSv probe and extension cable are mechanically and electrically compatible and interchangeable with Bently Nevada’s previous 3300 RAM proximity probe and extension cable.

The NSv probe has increased chemical resistance compared to the 3300 RAM probe, which allows its use in many process compressor applications.  The side-view characteristics of the 3300 NSv probe are also superior to those of the 3000-series 190 probe when gapping the 3300 NSv probe at the same distance from the probe target.   The 3300 NSv probe comes in varying probe case configurations, including armored and unarmored 1/4-28, 3⁄8-24, M8X1 and M10X1 probe threads.  The reverse mount 3300 NSv probe comes standard with either 3⁄8-24 or M10X1 threads.  All components of the transducer system have gold-plated brass ClickLoc connectors.  ClickLoc connectors lock into place and prevent the connection from loosening.  The patented TipLoc molding method provides a robust bond between the probe tip and the probe body.

Frequently Asked Questions

1. What is the Bently Nevada 330901-00-40-10-02-05?

The Bently Nevada 330901-00-40-10-02-05 is a 3300 NSv Proximity Probe designed for non-contact vibration and shaft position measurement in industrial rotating machinery. It is commonly used in applications where installation space is limited while maintaining reliable measurement performance.

2. What is the storage temperature range of this 330901-00-40-10-02-05 proximity probe?

The 330901-00-40-10-02-05 probe can be safely stored in temperatures ranging from -51°C to +177°C (-60°F to +351°F), making it suitable for long-term storage in a wide variety of industrial environments.

3. What is the 330901-00-40-10-02-05 total probe length?

This 330901-00-40-10-02-05 model features Length Option 10, which corresponds to a total probe length of 1.0 meter (39 inches). This length provides flexibility for many standard monitoring installations.

4. Is the 1.0-meter probe suitable for most installations?

Yes. The 1.0-meter (39-inch) configuration is a common standard length that provides sufficient routing flexibility for many machinery monitoring systems while maintaining signal integrity.

Product Applications

Oil & Gas: Centrifugal air compressors, natural gas transmission compressors, high-speed reciprocating compressors, small-power steam turbines.

Petrochemical & Refining: Process gas compressors, refrigeration compressors, large industrial pumps, high-speed fans.

Power Generation: Small industrial steam turbines, feedwater pumps, gearboxes, high-speed motors.

Air Separation & Industrial Gases: Integrally geared compressors, high-speed turbine expanders.
