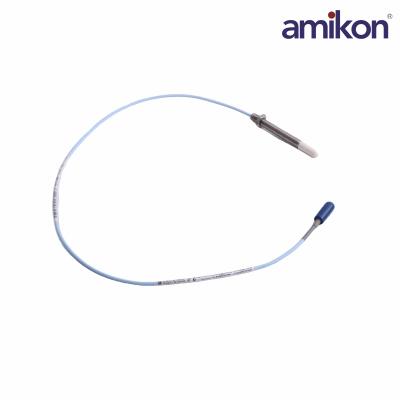

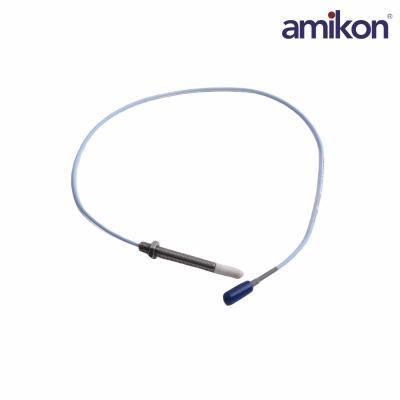

The Bently Nevada 330903-00-04-10-02-05 is a 3300 XL NSv Extension Cable designed for use as part of the 3300 XL NSv Transducer System. When connected with the corresponding 3300 XL NSv Proximity Probe and 3300 XL NSv Proximitor® Sensor, it forms a complete transducer system for non-contact proximity measurement and machinery condition monitoring.

The 3300 XL NSv Transducer System provides an average scale factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. This standardized output allows the complete transducer system to provide consistent signal characteristics for machinery monitoring applications.

The system incorporating the 330903-00-04-10-02-05 features enhanced side-view characteristics and is optimized for small target applications. These characteristics enable the NSv system to perform effectively in installations where limited mounting space or small shaft diameters require a compact sensing solution.

Frequently Asked Questions

What does the part number 330903-00-04-10-02-05 represent?

It is a Bently Nevada 3300 NSv metric proximity probe with an M8×1 thread, 0 mm unthreaded length, 40 mm overall case length, 1.0-meter total cable length, standard cable with a miniature ClickLoc coaxial connector, and Multiple Hazardous Area Approvals.

What is the thread size of the 330903 probe?

The 330903 model features a metric M8 × 1 thread. If you require an English thread (3/8-24 UNF), you must order the 330901 model instead.

What is the linear range of this probe?

The 3300 NSv system has a linear measurement range of 1.5 mm (60 mils).

What is the standard scale factor (SSF) of the system?

The nominal scale factor is 7.87 V/mm (200 mV/mil) when connected to a matching 3300 XL NSv Proximitor Sensor.

Product Applications

Oil and Gas (Oil and Gas Extraction and Refining): Used for internal condition monitoring of process gas compressors and centrifugal compressors.

Petrochemicals and Chemicals: Used for monitoring bearing condition in space-constrained special process compressors and large centrifugal pumps.

Power and Energy: Used for measuring bearing vibration and speed in small industrial steam turbines and auxiliary rotating machinery.
