The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:

• Radial vibration and radial position measurements

• Axial (thrust) position measurements

• Tachometer and zero speed measurements

• Phase reference (Keyphasor signals)

•

Frequently Asked Questions

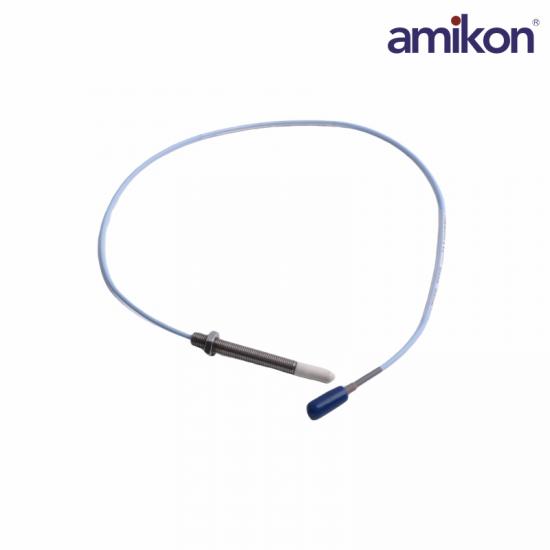

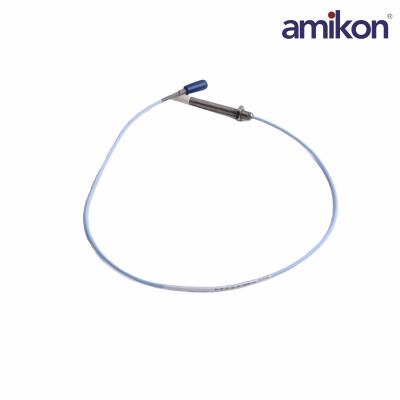

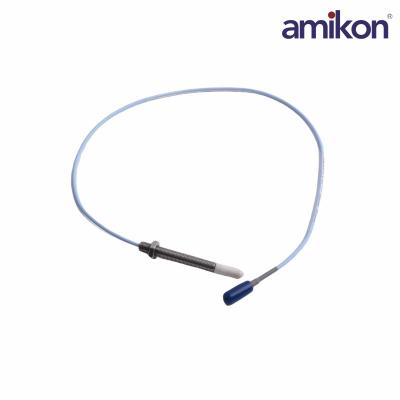

Q1: What is the Bently Nevada 330903-00-05-05-02-CN?

A1: It is a proximity probe designed for non-contact measurement of shaft vibration and displacement in rotating machinery monitoring systems.

Q2: What does the “05” case length option represent?

A2: It indicates a total case length of 50 mm, suitable for compact installations.

Q3: What is the 330903-00-05-05-02-CN cable length?

A3: The “05” option specifies a cable length of 0.5 meters.

Q4: What is the 330903-00-05-05-02-CN temperature rating?

A4: The 330903-00-05-05-02-CN probe operates within −52°C to +177°C (−62°F to +351°F), making it suitable for harsh industrial environments.

Q5: What is the 330903-00-05-05-02-CN main function of this proximity probe?

A5: It measures shaft position and vibration without physical contact, enabling accurate condition monitoring and machinery protection.

Product Applications

Electric power industry: Axial and radial vibration monitoring of turbine, generator, and large motor bearing boxes.

Petroleum and petrochemical industry: Centrifugal compressors, circulating fans, process compressors, gearboxes.

Chemical industry: Key production auxiliary equipment such as pumps, fans, and turbines.

Steel and metallurgy: Vibration monitoring of key fans and motors.
