The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring system with 3300 XL NSv Proximitor Sensor. Upgrades from the 3000-series or 7000-series Transducer System must replace the probe, extension cable, and Proximitor Sensor with NSv components.

The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced sideview and small target characteristics give it a shorter linear range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System. The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer System.

Frequently Asked Questions

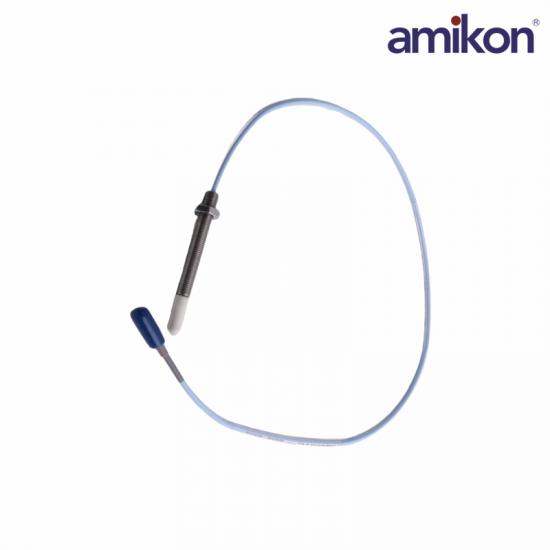

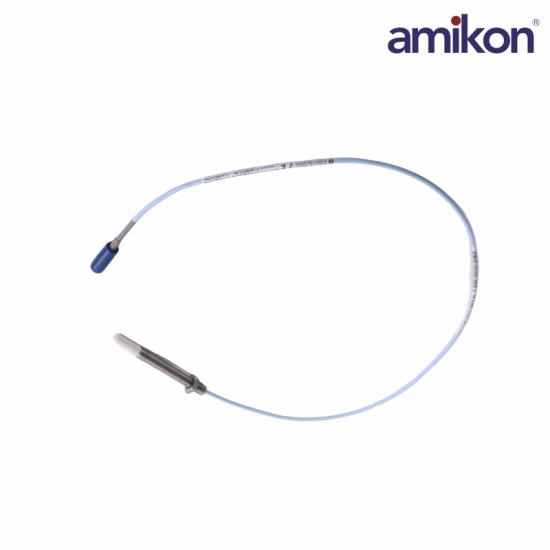

Q1: What is the Bently Nevada 330903-00-07-05-02-CN?

A1: It is a proximity transducer system used for non-contact measurement of shaft vibration and displacement in rotating machinery monitoring applications.

Q2: What does the “07” option represent?

A2: “07” indicates an overall case length of 70 mm.

Q3: What does the “05” option represent?

A3: “05” specifies a total cable length of 0.5 meter (20 inches).

Q4: What is the 330903-00-07-05-02-CN linear measurement range?

A4: The 330903-00-07-05-02-CN system provides a linear range of 1.5 mm (60 mils), ensuring accurate displacement measurement.

Q5: What is the 330903-00-07-05-02-CN sensitivity?

A5: The 330903-00-07-05-02-CN sensitivity is 7.87 V/mm (200 mV/mil), providing a stable and precise output signal.

Q6: What is the 330903-00-07-05-02-CN operating temperature range?

A6: The 330903-00-07-05-02-CN system operates within −35°C to +177°C (−31°F to +351°F), suitable for harsh industrial environments.

Product Applications

Oil & Gas: Used for rotor dynamic vibration monitoring in petrochemical enterprises, natural gas processing and transmission pipelines.

Power Generation: Used for vibration monitoring of generators, auxiliary equipment for steam turbines, fans and pumps in power plants.

Chemicals & Petrochemicals: Used for shaft displacement and vibration monitoring of compressors, pumps and large high-speed rotating machinery.

Steel & Metallurgy: Used for monitoring rotating equipment such as rolling mills and blowers.

General Industry: Widely applied in small-sized high-speed equipment, small-gap bearings, small-sized pumps, motors or fans that require precise approaching measurement.
