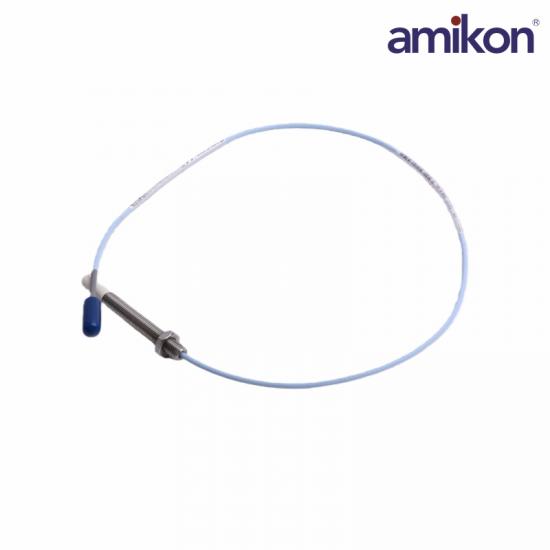

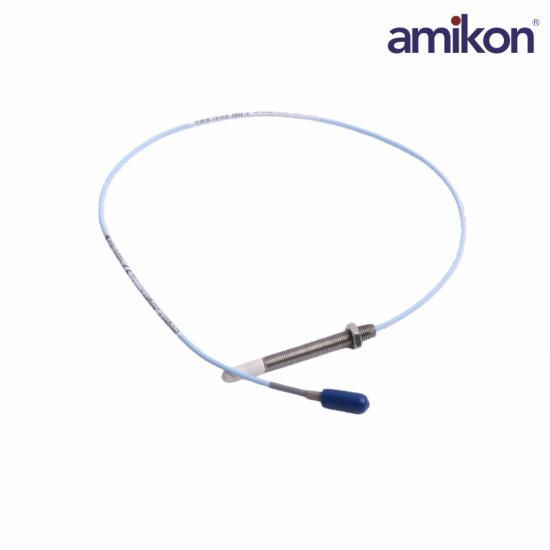

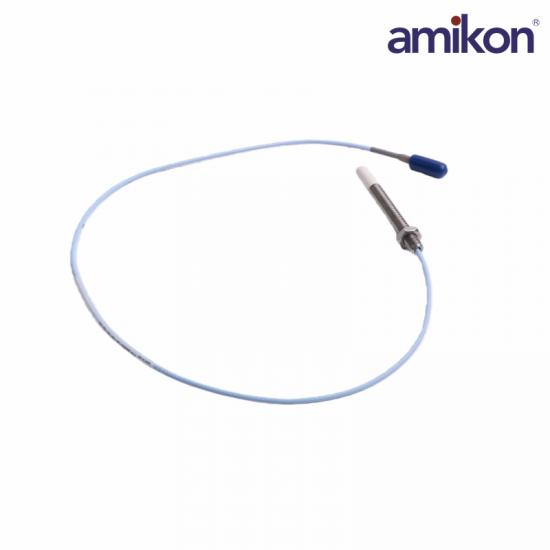

330903    3300 NSv Probe, M8X1 thread, without armor

A: Unthreaded Length Option

Minimum unthreaded length:0 mm

B: Overall Case Length Option

Maximum length: 110 mm

C: Total Length Option

0.5 meter (20 in)

D: Connector and Cable-Type Option

Miniature coaxial ClickLoc connector,standard cable

E: Agency Approval Option

Not required

Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil), ±12.5% / −20%

Deviation from Best Fit Straight Line (DSL): Less than ±0.06 mm (±2.3 mils)

Frequency Response: 0 to 10 kHz

Minimum Target Size (flat target): 8.9 mm (0.35 in) diameter

The 3300 Nsv probe comes in varying probecase configurations, including armored andunarmored1/4-28,3/8-24, M8x1 and M10x1probe threads. The reverse mount 3300 NSvprobe comes standard with either 3/8-24 orM10Xl threads.All components of thetransducer system have gold-plated brassClickLoc connectors.ClickLoc connectors lockinto place and prevent the connection fromloosening. The patented TipLoc moldingmethod provides a robust bond between theprobe tip and the probe body.Bently Nevada'spatented CableLoc design provides 220 N(50lb) of pull strength and securely attaches theprobe cable to the probe tip.Connectorprotectors are recommended for use on theprobe-to-extension cable connection, as wellas on the cable-to-Proximitor Sensorconnection.Connector protectors prevent mostliquids from entering into the ClickLocconnectors and adversely affecting theelectrical signal(2).

Notes.

(1)Proximitor sensors are supplied by defaultfrom the factory calibrated to AlSl 4140 steel.Calibration to other target materials isavailable upon request.

(2)silicone tape is also provided with each3300 NSv extension cable and can be usedinstead of connector protectors. Silicone tape isnot recommended in applications where theprobe-to-extension cable connection will beexposed to turbine oil.
