Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
Coo|
Specification |
Details |
|
Manufacturer |
Bently Nevada |
|
Model |

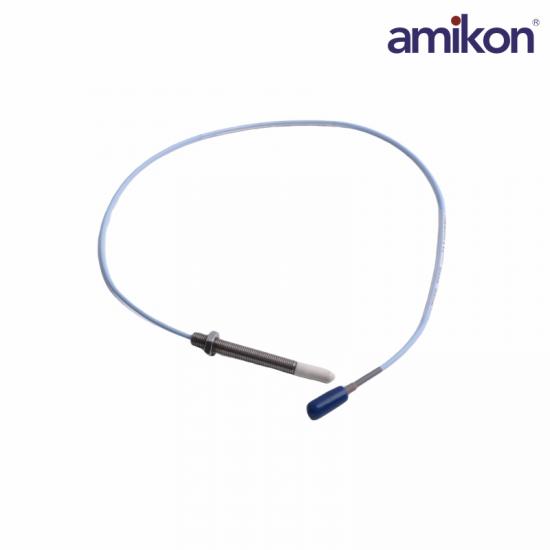

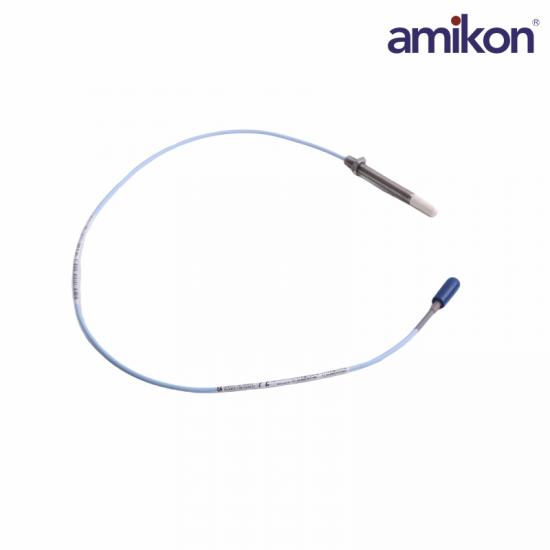

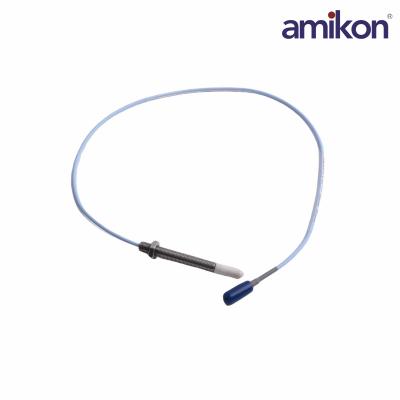

330903-00-16-10-02-05/CN |
|
Type |
Transducer System |
|
Extension Cable DC Resistance |
Center conductor: 0.220 Ω/m (0.067 Ω/ft) |
|
Extension Cable Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
|
Recommended Gap Setting |
1.0 mm (40 mils) |
|
Deviation from Best Fit Straight Line (DSL) |
Less than ±0.06 mm (±2.3 mils) |
|
Connector Material |
Gold-plated brass |
|
Recommended Torque |
Finger tight |
|
Maximum Torque |
0.56 N•m (5 in•lb) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
The 3300 XL NSv Proximity Transducer System is designed for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The system consists of the following components:
a 3300 NSv probe
a 3300 NSv extension cable
a 3300 XL NSv Proximitor Sensor(1)
The primary uses of the 3300 XL NSv Transducer System are in areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). The system is primarily used in the following applications on fluid-filmed bearing machines with a small shaft or reduced side-view:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero speed measurements
Phase reference (Keyphasor signals)
