Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:

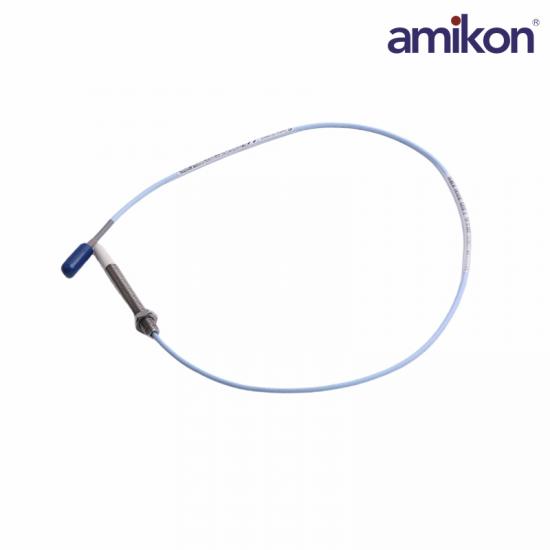

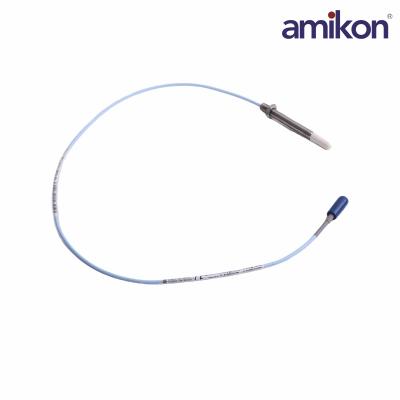

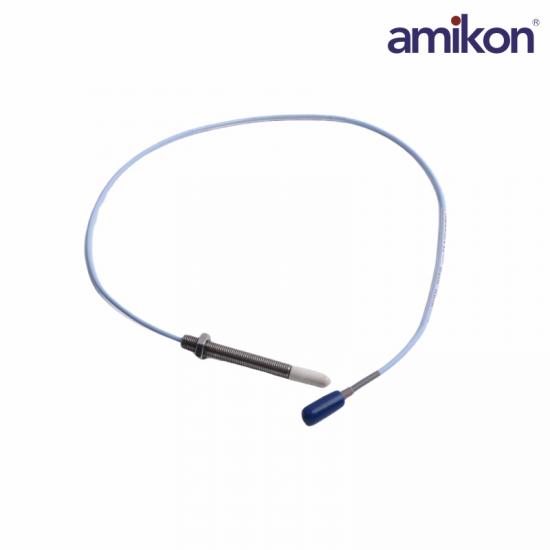

CooProduct Number: 330903-00-16-50-02-00
Manufacturer: Bently Nevada
Type:Proximity Probes
Recommended Gap Setting: 1.0 mm (40 mils)
Extension Cable DC Resistance:
Center Conductor: 0.220 Ω/m (0.067 Ω/ft)
Connector: Material Gold-plated brass
Probe Tip: Material Polyphenylene sulfide (PPS)
Probe Case: Material AISI 304 stainless steel (SST)
Recommended Torque: Finger tight
Maximum Torque: 0.56 N•m (5 in•lb)
The primary uses for the 3300 XL NSv Transducer System are for areas where counterbore, side-view, or rear-view restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 mm and 8 mm Transducer Systems. It is also ideal for small-target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-film bearing machines where a small shaft or reduced side-view is present:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero-speed measurements
Phase reference (Keyphasor signals)
