Description：

The 3300 XL NSv Transducer System has anAverage Scale Factor of 7.87 V/mm (200mV/mil), which is the most common output foreddy current transducers. Its enhanced side-view and small target characteristics give it ashorter linear range than the Bently Nevada3300 XL-series 5 and 8 mm Transducer System.The 1.5 mm (60 mils) of linear range exceedsthe linear range of the 3000-series 190Transducer System.

The 3300 NSv probe and extension cable aremechanically and electrically compatible andinterchangeable with Bently Nevada's previous3300 RAM proximity probe and extension cable.The NSv probe has increased chemicalresistance compared to the 3300 RAM probe,which allows its use in many process compressor applications. The side-viewcharacteristics of the 3300 NSv probe are alsosuperior to those of the 3000-series 190 probewhen gapping the 3300 NSv probe at the samedistance from the probe target.

Specification：

Frequently asked questions

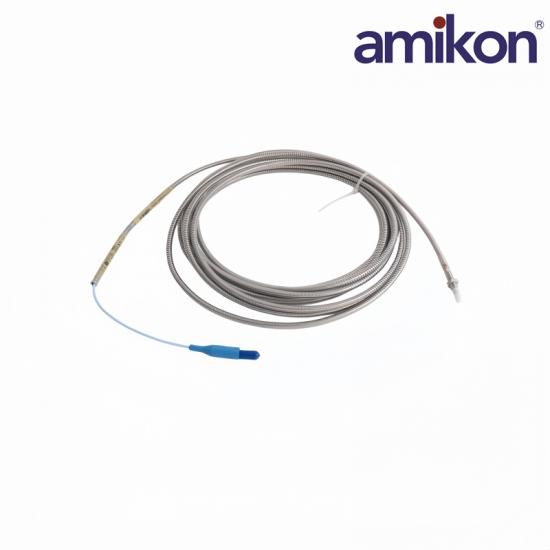

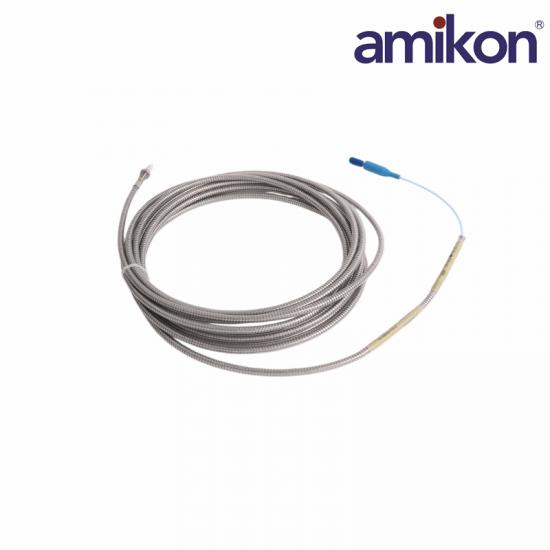

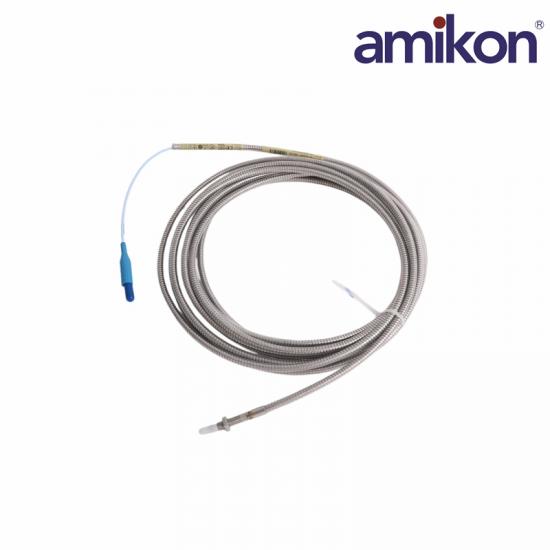

Q1: What is the Bently Nevada 330904-00-03-10-02-CN Proximity Probe used for?

A: The 330904-00-03-10-02-CN is a 3300 NSv Proximity Probe designed for non-contact measurement of shaft vibration, shaft position, and displacement in rotating machinery. It is widely used in machinery protection and condition monitoring systems.

Q2: What does the "03" option indicate in this 330904-00-03-10-02-CN model number?

A: The 03 option specifies an overall case length of 30 mm, making the probe suitable for installations where space is limited.

Q3: What is the total system length of the 330904-00-03-10-02-CN probe?

A: The -10 option indicates a total system length of 1.0 meter (39 inches), providing flexibility for mounting and cable routing.

Q4: What does "Supply Sensitivity Less than 2 mV change" mean?

A: This specification indicates that changes in the power supply voltage result in less than 2 mV variation in output, helping maintain measurement accuracy and signal stability.

Product Applications

Oil and Gas: Monitoring of compressors and pumps in oil refineries and natural gas pipelines.

Petrochemical and Chemical Industries: Continuous operation protection for various critical pumps and machinery in chemical reaction processes.

Power Energy: Monitoring of rotating machinery in small and medium-sized power plants, biomass power generation, and combined heat and power units.

Large-scale Air Separation and Refrigeration: Industrial gas manufacturing plants and large central air conditioning refrigeration units.
