The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:

• Radial vibration and radial position measurements

• Axial (thrust) position measurements

• Tachometer and zero speed measurements

• Phase reference (Keyphasor signals)

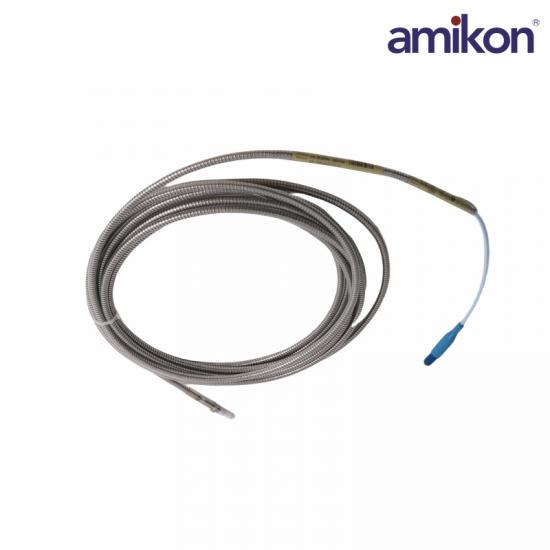

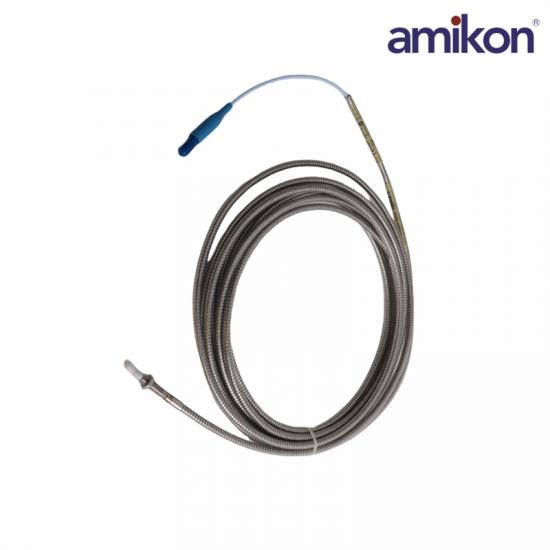

• The Bently Nevada 330904-00-13-05-02-CN is a 3300 NSv (Non-contacting Sensor) Proximity Probe. It features an M8 x 1 thread with stainless steel armor, designed for, but not limited to, centrifugal air compressors and small target applications to measure radial vibration and axial position.
•

Frequently Asked Questions

Q1: What is the 330904-00-13-05-02-CN?

A1: The 330904-00-13-05-02-CN is a Bently Nevada 3300 NSv proximity probe transducer system, designed for precise vibration and shaft position monitoring in industrial rotating equipment.

Q2: What type of probe does it use?

A2: It uses a 3300 NSv proximity probe with M8 × 1 thread, featuring armored construction for enhanced durability.

Q3: What connector and cable type are included?

A3: It is equipped with a miniature coaxial ClickLoc connector and standard cable.

Q4: What approvals does it have?

A4: The 330904-00-13-05-02-CN CN option indicates country-specific approvals (China certification).

Product Applications

Oil and Gas / Chemicals: Monitoring of centrifugal air compressors, refrigeration compressors and process gas compressors.

Electricity: Monitoring of shaft vibrations of small and medium-sized steam turbines, hydro turbines, electric motors and generator sets.

Steel and Paper: Applied to the rolls of hot/cool rolling production lines and paper machine bearings for precise monitoring.

General Manufacturing: CNC spindle vibration tracking of machining centers, fault prevention for semiconductor equipment and displacement measurement of pump shafts.

Factory application scenarios:

Key equipment protection: Used to achieve automatic shutdown protection for equipment, preventing severe mechanical accidents.

Installation in narrow spaces: Compared to the 3300 XL series, the NSv model has been specifically optimized for lateral interference characteristics, suitable for compact factory equipment with smaller installation holes or complex background materials.
