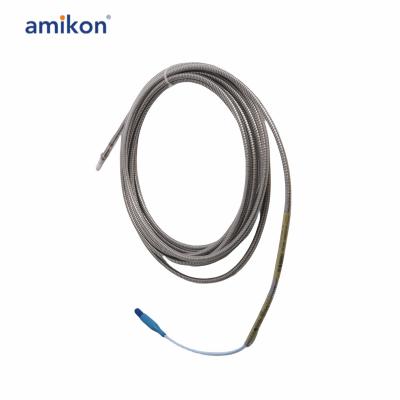

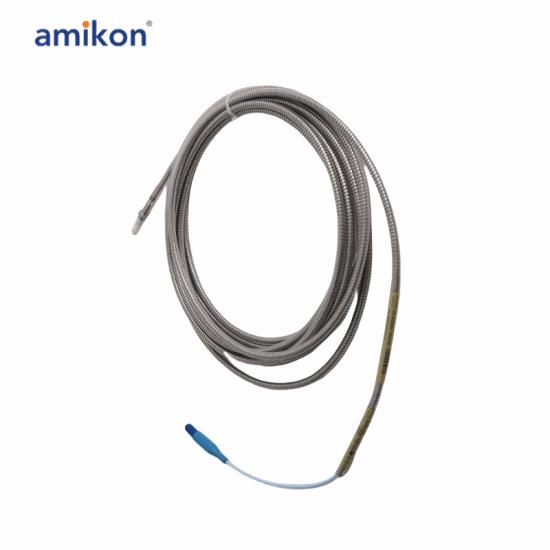

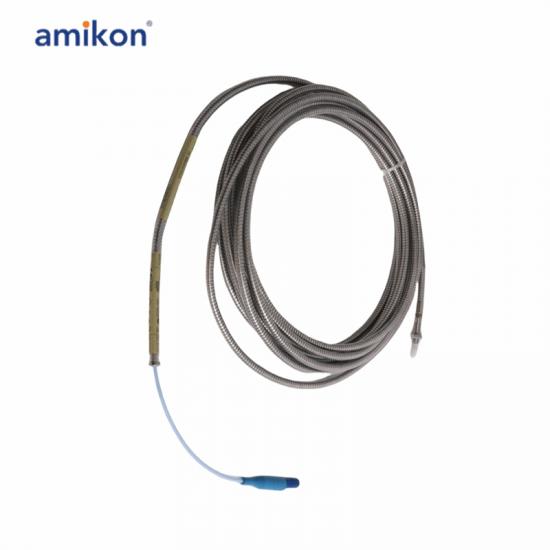

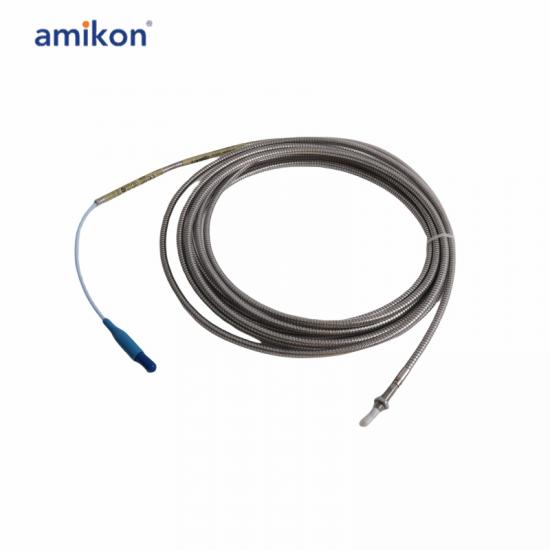

Product Model:330904-00-21-50-02-00

Product Name:3300 NSv Proximity Probe

Probe Type: 3300 NSv (Narrow Side-view)

Tip Diameter: 5 mm (0.197 in)

Probe Length: 21 inches (nominal system length)

Armor Option: 50 – with standard cable armor

Cable Length: 2 ft (probe cable)

Connector on Proximitor End: 00 – standard male connector

Thread Size: 1/4-28 UNF mounting thread

Sensing Range: Typically 1.0 mm (40 mils)

Target Material: 4140 steel (calibrated)

Operating Temperature: -51°C to +177°C (-60°F to +350°F)

The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems. It is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 51 mm (2 in) or axial position on flattargets smaller than 15 mm (0.6 in).The 3300 XL NSv Transducer System has anAverage Scale Factor of 7.87 V/mm (200mV/mil), which is the most common output for eddy current transducers. Its enhanced sideview and small target characteristics give it a shorter linear range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System.The side-viewcharacteristics of the 3300 NSv probe are also superior to those of the 3000-series 190 probe when gapping the 3300 NSv probe at the samedistance from the probe target.
