The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems. It is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 51 mm (2 in) or axial position on flattargets smaller than 15 mm (0.6 in). It is primarily used in thefollowing applications on fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

Frequently Asked Questions

Q : What does the model number 330904-08-15-10-02-05 represent?

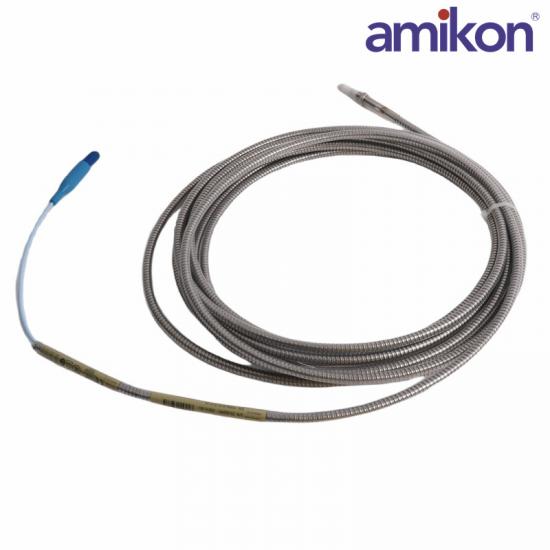

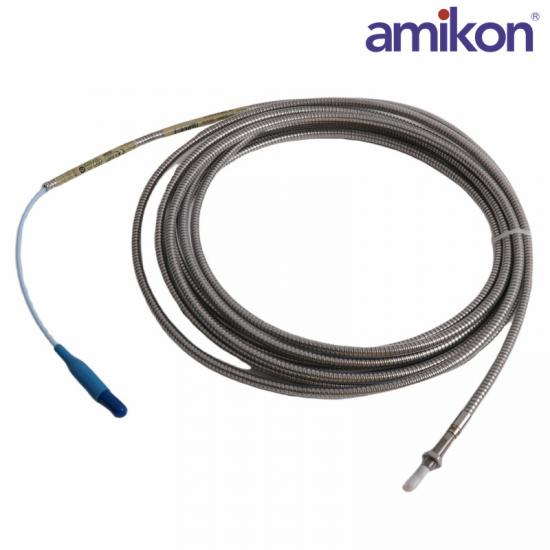

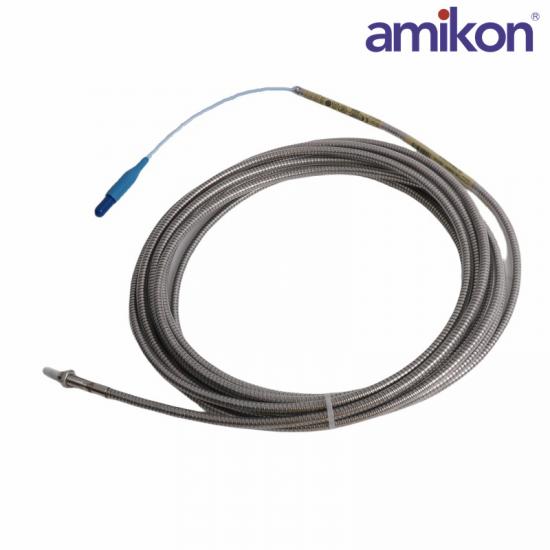

A : It is a Bently Nevada 3300 XL NSv (Narrow Space version) proximity probe with an M8×1 metric thread, 80mm unthreaded length, 150mm total case length, 1.0-meter total cable length, miniature coaxial ClickLoc connector with standard cable, and multiple hazardous area approvals.

Q : What is the linear range of this NSv proximity probe?

A : The typical linear range of a 3300 XL NSv probe system is 0.5 to 2.0 mm (approx. 20 to 80 mils), which is tighter than standard 8mm probes.

Q : What is the average Average Scale Factor (ASF) for this probe system?

A : The standard system scale factor is 7.87 V/mm (200 mV/mil) when paired with the correct 3300 XL NSv Proximitor.

Q : Is this product sold as a complete system?

A : No. Part number 330904-08-15-10-02-05 is for the probe only. To make a functioning system, you must purchase the matching extension cable and Proximitor sensor separately.

Product Applications

Oil and Gas (Petrochemical): Monitoring of compressor units in oil refineries and pipelines.

Power and Nuclear Power: Vibration and displacement of steam turbine and hydro generator shafts in power plants.

Metallurgy and Iron & Steel: Blast furnace blowers and drive shafts of large rolling mills.

Chemicals and Paper: High-load centrifuges and continuously operating large rotating equipment.
