Description：

The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems. It is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 51 mm (2 in) or axial position on flattargets smaller than 15 mm (0.6 in). It is primarily used in thefollowing applications on fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

Specification：

Frequently asked questions

Q1: What is the Bently Nevada 330905-00-03-10-02-CN used for?

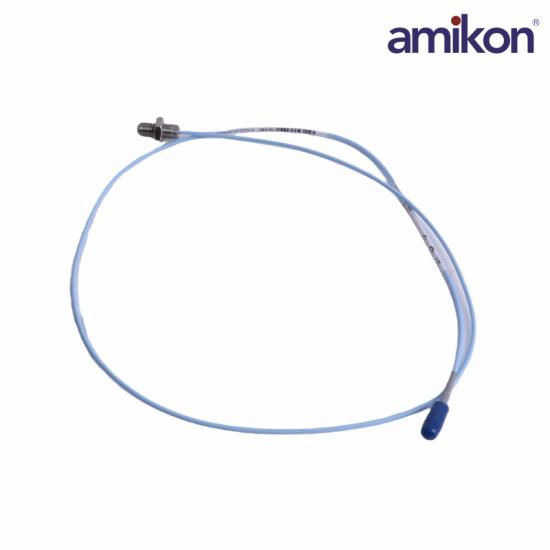

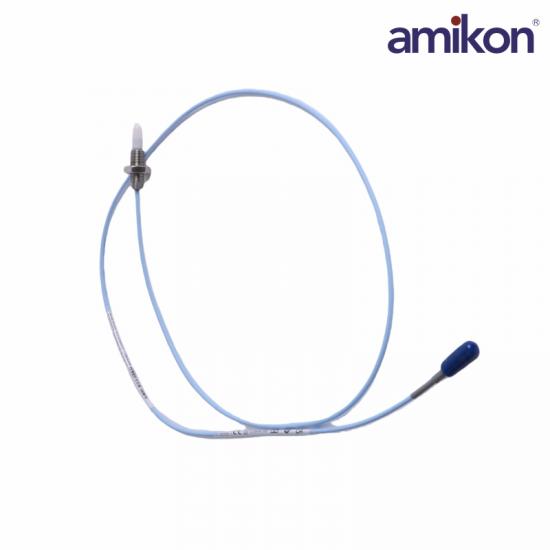

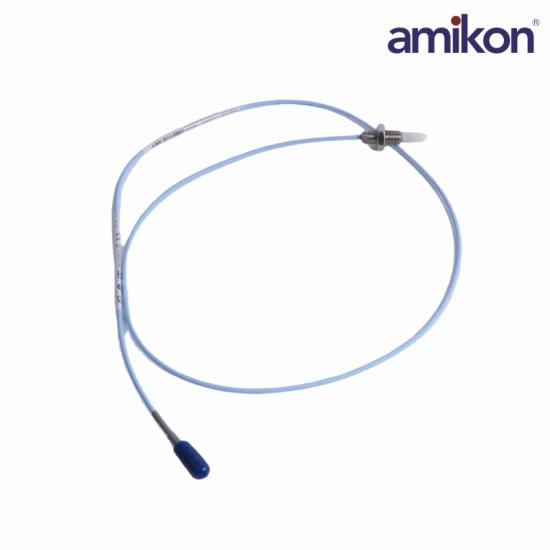

A1:The Bently Nevada 330905-00-03-10-02-CN is a 3300 NSv Proximity Probe used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery.

Q2: What does Overall Case Length Code 03 indicate?

A2:The Code 03 option specifies an overall case length of 30 mm, making the probe ideal for installations with limited mounting space.

Q3: What does Total Length Code 10 mean?

A3:The 330905-00-03-10-02-CN Code 10 option indicates a total length of 1.0 meter (39 inches), providing flexibility for installation and cable routing.

Q4: What is the 330905-00-03-10-02-CN output resistance of this probe?

A4:The 330905-00-03-10-02-CN probe has an output resistance of 50 Ω, helping ensure reliable signal transmission and compatibility with monitoring equipment.

Product Applications

Oil & Gas: Monitors shaft vibration and displacement in large centrifugal compressors, reciprocating compressors, and gas turbines to prevent catastrophic shutdowns.

Power Generation: Used in power plants for monitoring the dynamic balance and mechanical clearance of steam turbines, water turbines, and generator sets.

Petrochemicals: Monitors the operating status of various high-speed pumps, fans, and agitators under harsh conditions of high temperature, high pressure, and flammable/explosive environments.

Metallurgy: Used in large blowers, blast furnace equipment, and rolling mills to ensure the mechanical integrity of critical transmission components.
