Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooBrand:Bently Nevada

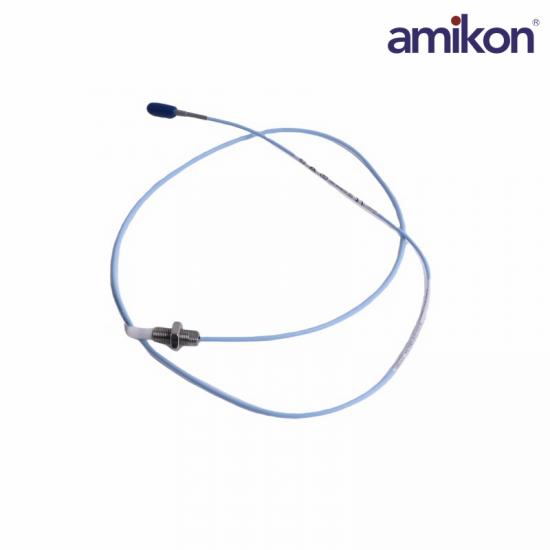

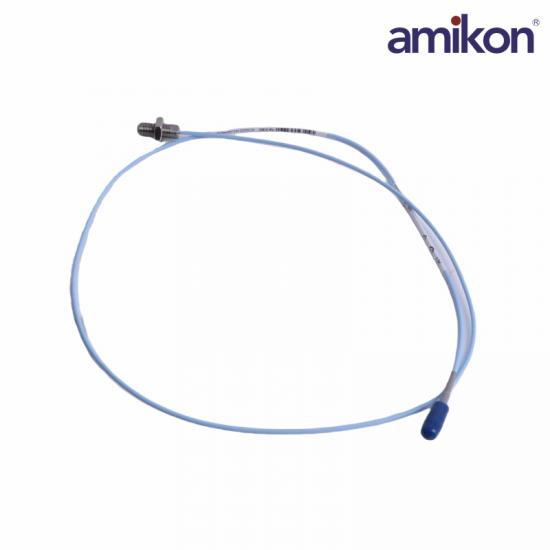

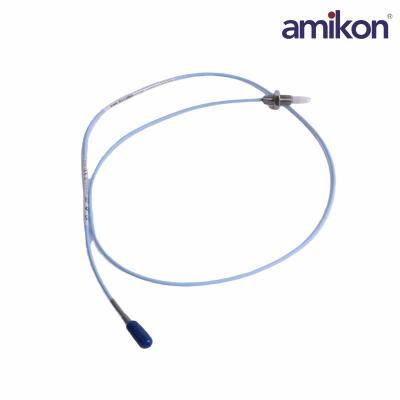

Model:330905-00-08-10-02-05/CN
Type:Proximity Sensor System
Unthreaded Length Option : 00 = 0 mm
Overall Case Length Option : 25 = 250mm
Total Length Option : 05 = 0.5 metre (20 in)
Connector and Cable-Type Option : 02 = Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option : CN = Approvals country specific (CN Approvals Option Quick Reference Guide and Field Notification Letter are in the download section)
Probe Tip Material: Polyphenylene sulfide (PPS).
Probe Case Material: AISI 304 stainless steel (SST).
Probe Cable Specifications: 75 ? coaxial, fluoroethylene propylene (FEP) insulated probe cable in the following total probe lengths: 0.5, 1, 5, or 7 metres.
Operating Temperature: -34°C to +177°C (-30°F to +351°F)
Storage Temperature: -51°C to +177°C (-60°F to +351°F)
The 330905-00-08-10-02-05/CN is part of the Bently Nevada 3300 XL NSv Proximity Sensor System. It features an M10 x 1 thread, 1 meter cable length, a micro coaxial ClickLoc connector, and an unarmored standard cable. The NSv probe offers greater chemical resistance than the 3300 RAM probe and can be used in many process compressor applications. The 3300 NSv probe has better side-view characteristics than the 3000 Series 190 probe at the same gap setting to the probe target. The 3300 NSv probe is available in a variety of probe housing configurations, including ¼ -28, 3⁄8 -24, M8 X 1, and M10 X 1 probe threads with and without armor.
The reverse mounted 3300 NSv probe is standardly available with either 3⁄8 -24 or M10 X 1 threads. All components of the sensor system feature gold plated brass ClickLoc connectors that lock into place to prevent loosening. The patented TipLoc molding method creates a secure connection between the probe tip and the probe body. Bently Nevada’s patented CableLoc design provides 220 N (50 lbs) of pull strength to securely connect the probe cable to the probe tip. Connector boots are recommended on the probe to extension cable connection and the cable to the proximitor sensor connection to prevent most liquids from entering the ClickLoc connector and adversely affecting the electrical signal.
