Description：

The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems. It is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 51 mm (2 in) or axial position on flattargets smaller than 15 mm (0.6 in). It is primarily used in thefollowing applications on fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

The 3300 XL NSv Transducer System design allows it toreplace both the 3300 RAM Transducer Systems and the3000-series or 7000-series 190 Transducer System. Upgradesfrom the 3300 RAM system to the 3300 XL NSv system mayuse the existing probe, extension cable, and monitoring system with 3300 XL NSv ProximitorSensor. Upgrades from the 3000-series or7000-series Transducer System must replacethe probe, extension cable, and ProximitorSensor with NSv components.

Specification：

Frequently asked questions

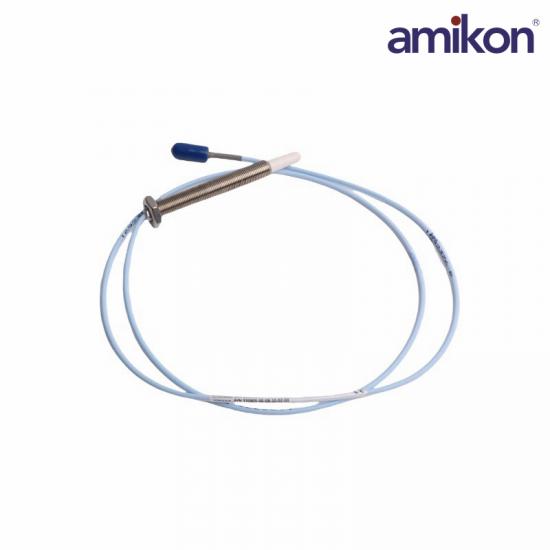

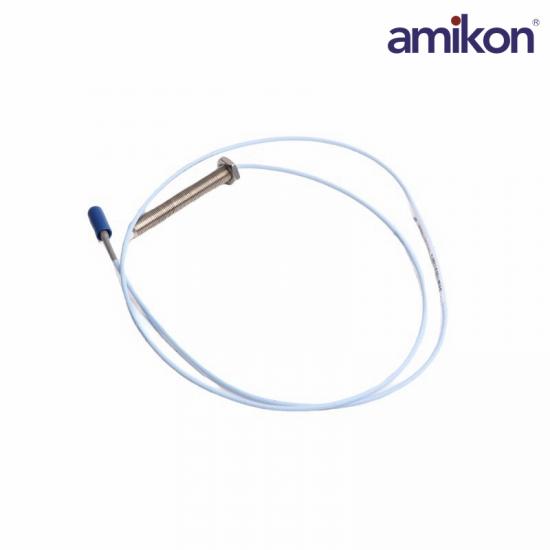

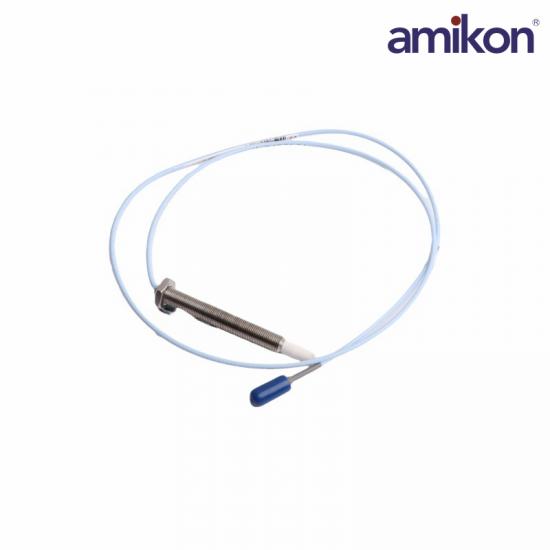

Q1: What is the Bently Nevada 330905-00-08-10-02-CN used for?

A1:The Bently Nevada 330905-00-08-10-02-CN is a 3300 NSv Proximity Probe designed for non-contact measurement of shaft vibration, displacement, and position in rotating machinery.

Q2: What does Overall Case Length Code 08 indicate?

A2:The 330905-00-08-10-02-CN Code 08 option specifies an overall case length of 80 mm, making the probe suitable for installations where a compact probe housing is required.

Q3: What does Total Length Code 10 mean?

A3:The Code 10 option indicates a total length of 1.0 meter (39 inches), providing flexibility for mounting and cable routing.

Q4: What is the recommended gap setting for this 330905-00-08-10-02-CN probe?

A4:The 330905-00-08-10-02-CN recommended gap setting is 1.0 mm (40 mils), which helps ensure optimal probe performance and measurement accuracy.

Product Applications

Oil and Gas: Centrifugal heavy-duty compressors, high-pressure reciprocating compressors, large fans

Petrochemicals and Chemicals: Process gas compressors, high-speed turbines, various fluid transfer pumps

Power Energy: Steam turbine generator sets, feedwater pumps, induced draft fans, gearbox reducers

Steel Plants and Metallurgy: Blast furnace blowers, high-pressure dust collector fans, large rotating roller bearings
