Manufacturer: Bently Nevada

Model Number: 330905-00-10-10-01-00

Series: 3300 NSv

Function: Non-contact proximity probe for vibration and position sensing

Target Material: 4140 steel (standard calibration)

Measurement Range: 0.25 to 1.9 mm (10 to 75 mils)

Sensitivity: 5.8 V/mm (147 mV/mil)

Linearity Tolerance: ±0.063 mm (±2.5 mils) over linear range

Probe Tip Diameter: 5 mm

Probe Length: 1.0 meter

Connector Type: Micro-dot coaxial connector

Thread Type (Mounting): 1/4-28 UNF

Operating Temperature: –35 °C to +177 °C

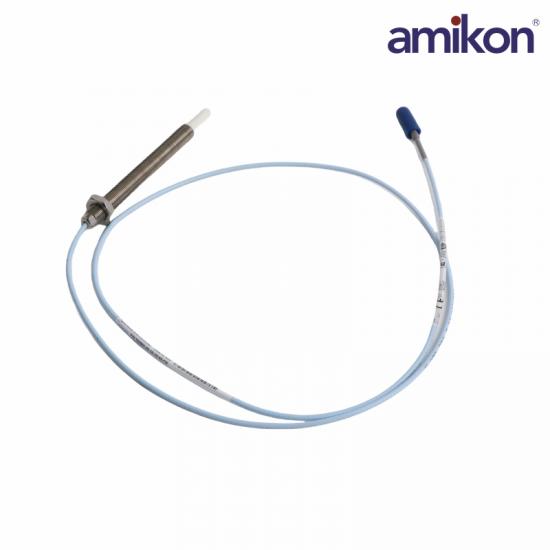

The Bently Nevada 330905-00-10-10-01-00 is part of the 3300 NSv Proximity Transducer System, specially designed for applications with space-constrained or small target surfaces, such as small steam turbines, gearboxes, pumps, and motors.

As a critical component in the NSv system, this probe is used in combination with a matching extension cable and Proximitor sensor. It provides non-contact vibration and position monitoring with exceptional sensitivity and accuracy. The 3300 NSv system is especially well-suited for shafts or targets less than 25 mm (1 in) in diameter, where standard probes cannot be effectively mounted.

The NSv series also meets API 670 requirements and offers excellent immunity to electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring stable, reliable data even in electrically noisy industrial environments.
