The 3300 NSv probe comes in various probe case configurations, including armored and unarmored 1/4-28, 3⁄8-24, M8X1, and M10X1 probe threads. The reverse mount 3300 NSv probe is standard with either 3⁄8-24 or M10X1 threads. All components of the transducer system are equipped with gold-plated brass ClickLoc connectors. These ClickLoc connectors lock into place to prevent the connection from loosening.The patented TipLoc molding method ensures a robust bond between the probe tip and the probe body. Bently Nevada’s patented CableLoc design provides 220 N (50 lb) of pull strength, securely attaching the probe cable to the probe tip.Connector protectors are recommended for use on both the probe-to-extension cable connection and the cable-to-Proximitor Sensor connection. They help prevent most liquids from entering the ClickLoc connectors and adversely affecting the electrical signal.

Notes:

(1) Proximitor Sensors are factory-calibrated to AISI 4140 steel by default. Calibration to other target materials is available upon request.

(2) Silicone tape is included with each 3300 NSv extension cable and can be used in place of connector protectors. However, silicone tape is not recommended for applications where the probe-to-extension cable connection is exposed to turbine oil.

Frequently Asked Questions

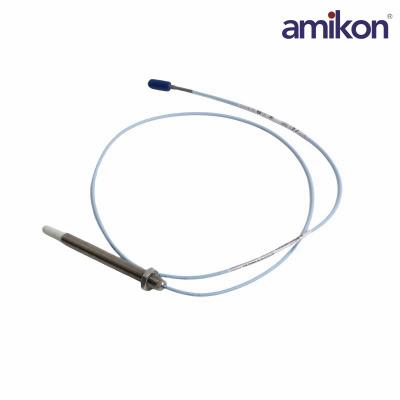

Q1: What is the 330905-00-11-05-01-00?

A1: The 330905-00-11-05-01-00 is a Bently Nevada 3300 NSv proximity probe, designed for accurate vibration and shaft displacement monitoring in rotating machinery.

Q2: What is the 330905-00-11-05-01-00 linear measurement range?

A2: It provides a linear range of 1.5 mm (60 mils).

Q3: What is the 330905-00-11-05-01-00 operating temperature range?

A3: The probe operates within −34°C to +177°C (−30°F to +351°F).

Q4: What are the 330905-00-11-05-01-00 typical applications?

A4: It is widely used in turbines, compressors, pumps, and motors, enabling reliable vibration and displacement monitoring for machinery protection systems.

Product Applications

Electric power industry: Vibration monitoring of turbine generator sets, induced draft fans, supply fans, and coal grinding machine bearings in power plants.

Petroleum and natural gas: Centrifugal compressors, pumps, and screw compressors in oil refineries and petrochemical plants for shaft displacement and rotational speed monitoring.

Steel industry: Axial and radial clearance measurement of large machinery such as blast furnace fans and axial flow compressors for bearing.

Chemical industry: Real-time monitoring of vibration status of reactors and key pump groups to prevent unplanned shutdowns.
