The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems. It is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 51 mm (2 in) or axial position on flattargets smaller than 15 mm (0.6 in). It is primarily used in thefollowing applications on fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

Frequently Asked Questions

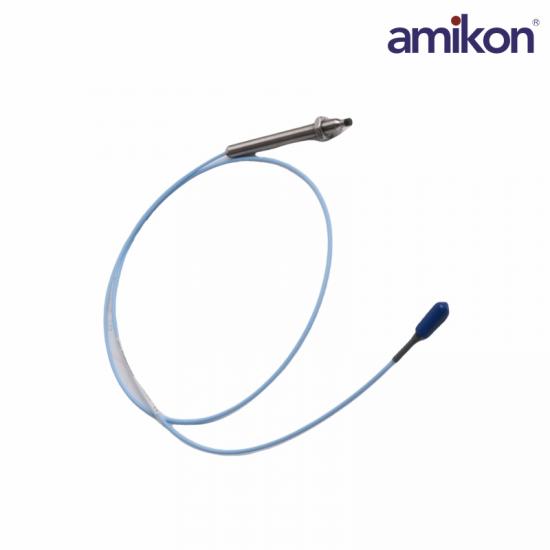

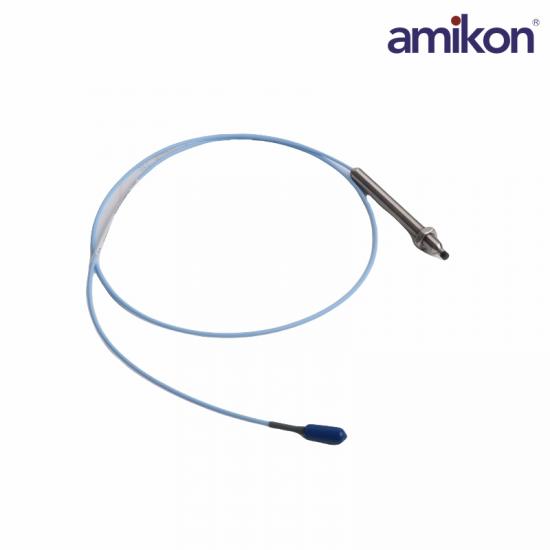

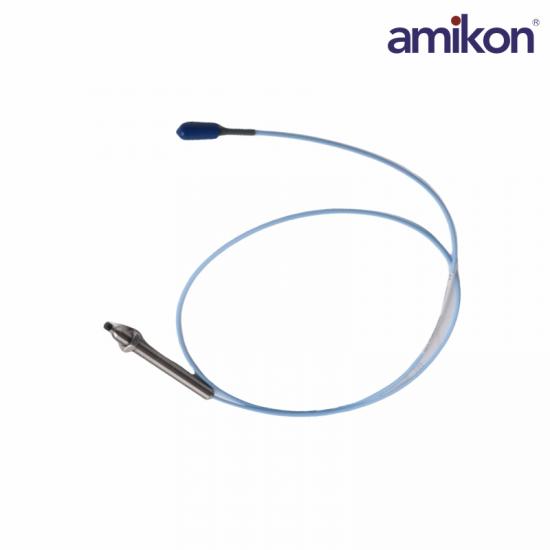

Q1: What is the Bently Nevada 330905-00-15-05-02-00 Proximity Probe used for?

A1: The 330905-00-15-05-02-00 is a non-contact proximity probe used to measure shaft vibration, shaft position, eccentricity, and displacement in rotating machinery monitoring and protection systems.

Q2: What is the resolution of the 330905-00-15-05-02-00 probe?

A2: The 330905-00-15-05-02-00 probe offers a high measurement resolution of 0.1 μm (0.4 μin), enabling precise shaft movement detection.

Q3: What is the frequency response range of the 330905-00-15-05-02-00 probe?

A3: The 330905-00-15-05-02-00 frequency response range is 2 Hz to 10 kHz, allowing accurate monitoring of both low- and high-frequency vibration signals.

Q4: What output signal does the 330905-00-15-05-02-00 probe provide?

A4: The 330905-00-15-05-02-00 probe provides a standard 4 to 20 mA output signal, making it compatible with a wide range of industrial monitoring and control systems.

Q5: What is the total cable length of this 330905-00-15-05-02-00 model?

A5: Total Cable Length Option -05 corresponds to 0.5 meter (20 inches).

Product Applications

Oil and Gas: Used for monitoring critical centrifugal compressors, reciprocating compressors, and industrial fans.

Power Plants: Used for monitoring shaft vibration and displacement in steam turbines, gas turbines, and generator sets.

Water Treatment and Heavy Industry: Monitors the operating status of large high-pressure water pumps, motors, and gearboxes.
