The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced sideview and small target characteristics give it a shorter linear range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System. The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer System.

Frequently Asked Questions

Q1: What is the 330905-00-16-10-01-00?

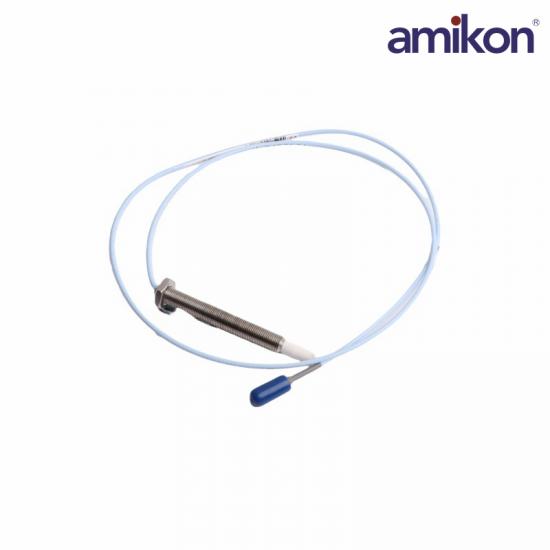

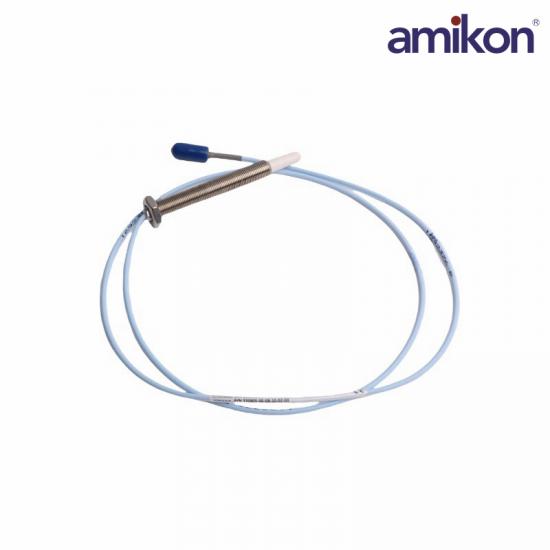

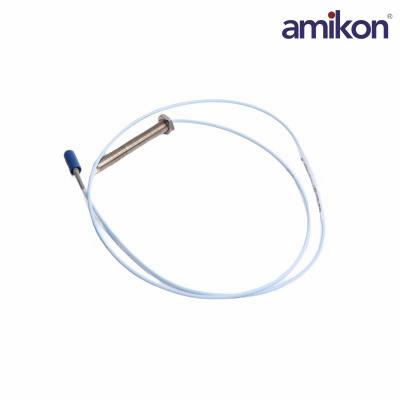

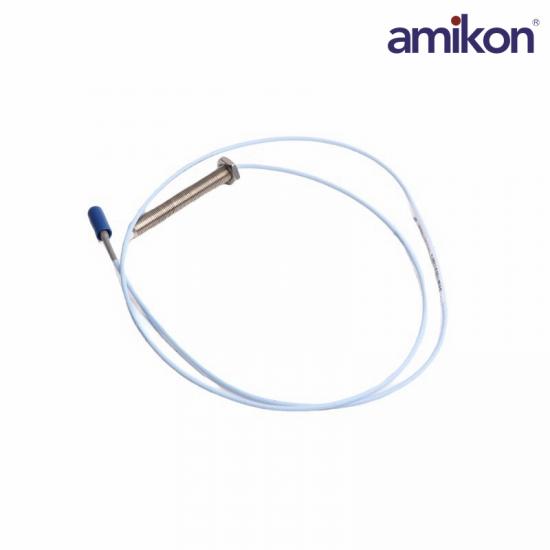

A1: The 330905-00-16-10-01-00 is a Bently Nevada 3300 NSv proximity probe, used for precise measurement of shaft displacement and vibration in rotating machinery.

Q2: What connector type does it use?

A2: It is equipped with a miniature coaxial connector (Option 01).

Q3: Does it include agency approvals?

A3: No, Option 00 indicates that no specific agency approvals are included.

Q4: What is the 330905-00-16-10-01-00 linear measurement range?

A4: The probe has a linear range of 0.25 to 1.75 mm (10–70 mils).

Q5: What is the 330905-00-16-10-01-00 operating temperature range?

A5: It operates in extreme environments from −52°C to +177°C.

Product Applications

Centrifugal air compressors.

Refrigeration compressors.

Process gas compressors.

Radial vibration and position measurements.

Axial (thrust) position measurements.

Tachometer and zero speed measurements.

Technical Advantages

Anti-interference capability: Possesses strong resistance to radio frequency (RFI) and electromagnetic (EMI) interference.

Limited side view restriction: Its design enables operation in situations where the space on the side of the probe head is very narrow, without generating false signals.

Interchangeability: Compatible with the earlier 3300 RAM probe and cable in terms of both mechanical and electrical aspects.
