Description：

The 3300 XL NSv Proximity Transducer system is intended foruse with centrifugal air compressors, refrigerationcompressors, process gas compressors, and other machineswith tight installation requirements. The 3300 XL NSv ProximityTransducer System consists of:

a 3300 NSv probe

a 3300 NSv extension cable

a 3300 XL NSv Proximitor Sensor(1)

The 3300 XL NSv Transducer System design allows it toreplace both the 3300 RAM Transducer Systems and the3000-series or 7000-series 190 Transducer System. Upgradesfrom the 3300 RAM system to the 3300 XL NSv system mayuse the existing probe, extension cable, and monitoring system with 3300 XL NSv ProximitorSensor. Upgrades from the 3000-series or7000-series Transducer System must replacethe probe, extension cable, and ProximitorSensor with NSv components.

Specification：

Frequently asked questions

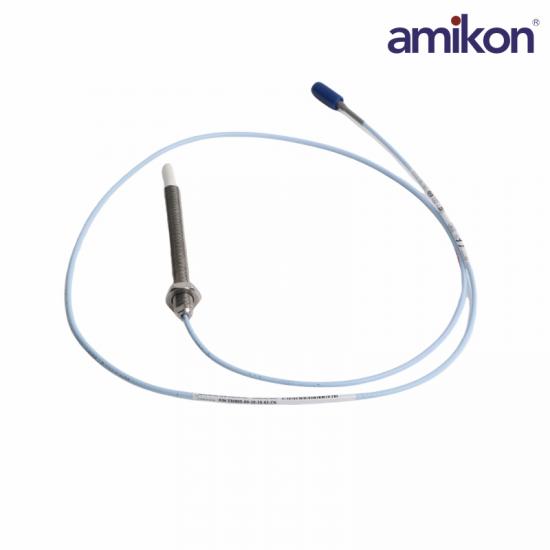

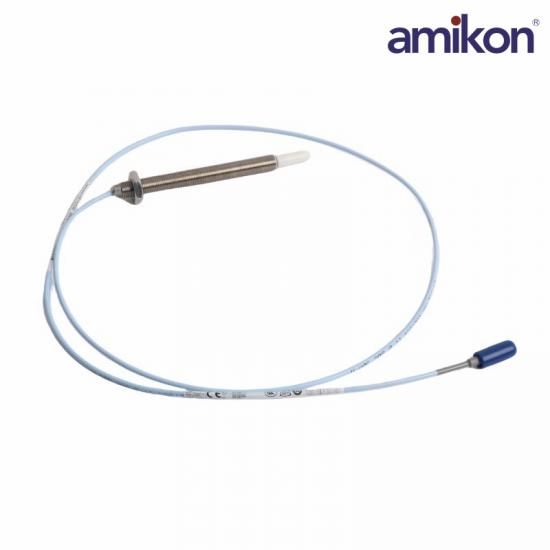

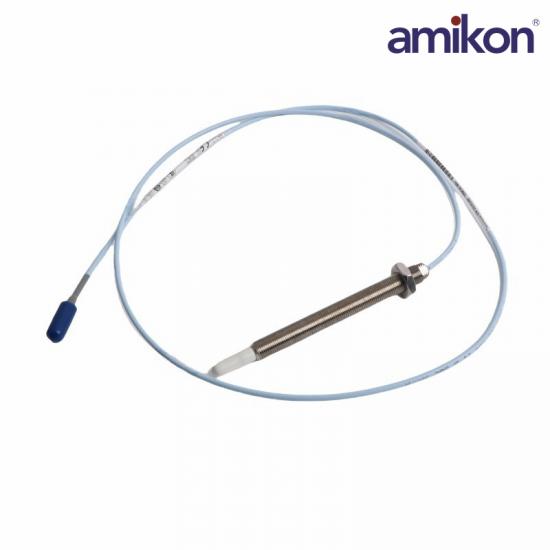

Q1: What is the Bently Nevada 330905-00-18-10-02-CN used for?

A1:The Bently Nevada 330905-00-18-10-02-CN is a 3300 NSv Proximity Probe used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery. It is commonly used in machinery protection and condition monitoring systems.

Q2: What is the frequency response of this 330905-00-18-10-02-CN proximity probe?

A2:The 330905-00-18-10-02-CN probe provides a frequency response of 0 to 10 kHz (+0, -3 dB typical), allowing accurate monitoring of both low-frequency and high-frequency vibration signals.

Q3: What does Overall Case Length Code 18 indicate?

A3:The 330905-00-18-10-02-CN Code 18 option specifies an overall case length of 180 mm, making the probe suitable for applications that require additional installation depth and mounting flexibility.

Q4: What is the 330905-00-18-10-02-CN minimum target size required for accurate measurement?

A4:The 330905-00-18-10-02-CN probe requires a minimum flat target diameter of 8.9 mm (0.35 inches) to achieve accurate and reliable measurements.

Product Applications

Petrochemical/Refinery Plants: Centrifugal air compressors, refrigeration compressors, process gas compressors, large pump sets

Thermal/Hydropower Plants: Small and medium-sized steam turbines, feedwater pumps, blowers, generator bearing housings

Air Separation Plants: Large industrial fluid machinery, high-speed turbine expanders

Steel/Metallurgical Plants: Blast furnace blowers, large transmission gearboxes
