Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:

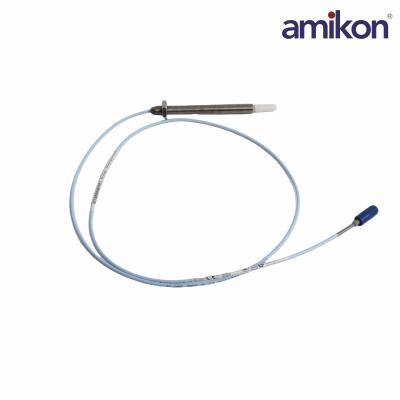

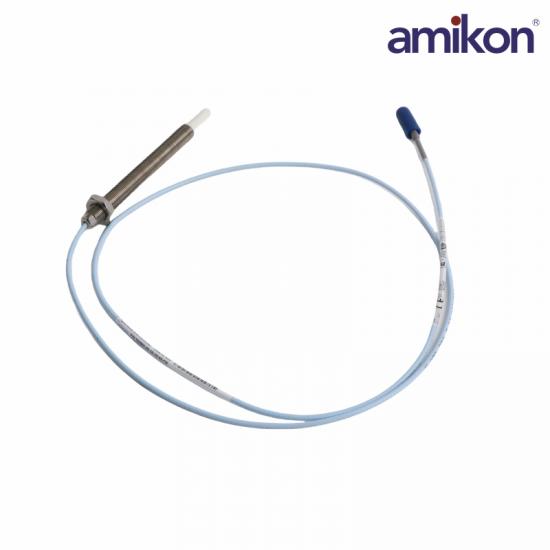

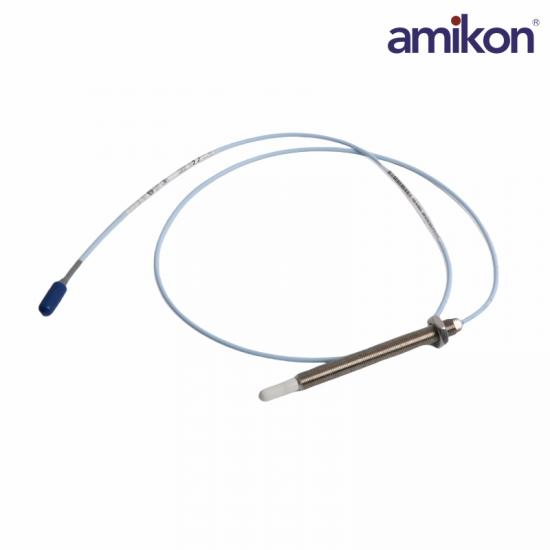

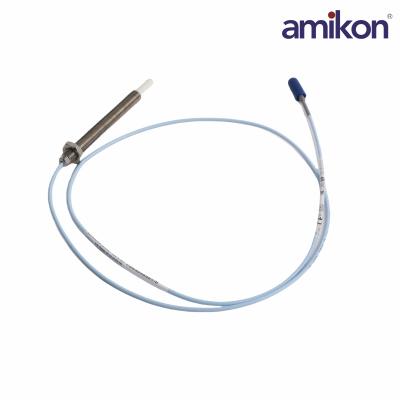

CooModel Number:330905-00-21-05-02-CN
Probe Thread: M10 X 1 (without armor)
Unthreaded Length: 00 = 0 mm
Overall Case Length: 21 = 210 mm
Total Length: 05 = 0.5 meter (20 in)
Connector and Cable Type: 02 = Miniature coaxial ClickLoc connector,standard cable
Agency Approval Option : CN= Country-specific approvals (see Quick Reference Guide and Field Notification Letter in downloads)
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 304 stainless steel (SST)
Operating Temperature: -34°C to +177°C (-30°F to +351°F)
Storage Temperature: -51°C to +177*C (-60°F to +351°F)
Shipping Weight: 1.5 kg
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero speed measurements
Phase reference (Keyphasor signals)
