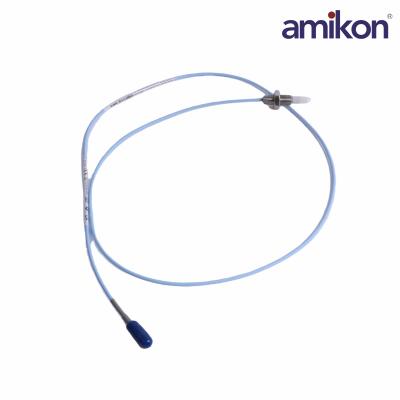

Model Number: 330905-00-22-05-02-CN

Series: 3300 NSv (Narrow Side-view)

Tip Diameter: 5 mm (0.197 in)

Probe Length: 22 inches (nominal)

Cable Length: 5 meters (02)

Connector Style: Miniature coaxial connector

Thread Size: 1/4-28 UNF-2A

Material: Stainless steel probe case and cable armor

Target Material: Typically calibrated for AISI 4140 steel

Measurement Range: Up to 2 mm (80 mils)

Sensitivity: 7.87 mV/µm (200 mV/mil)

Operating Temperature: -35°C to +177°C (-31°F to +351°F)

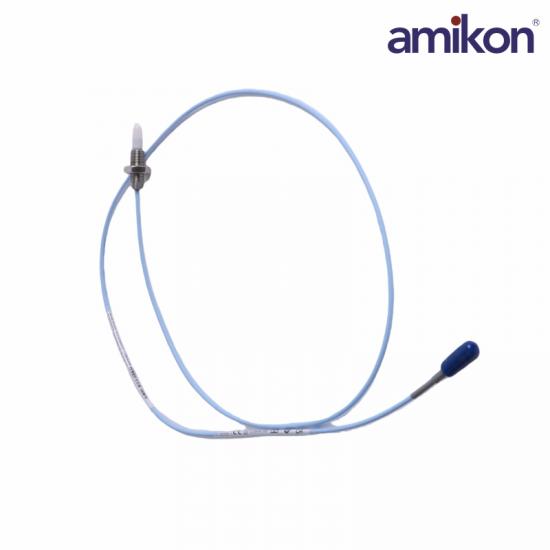

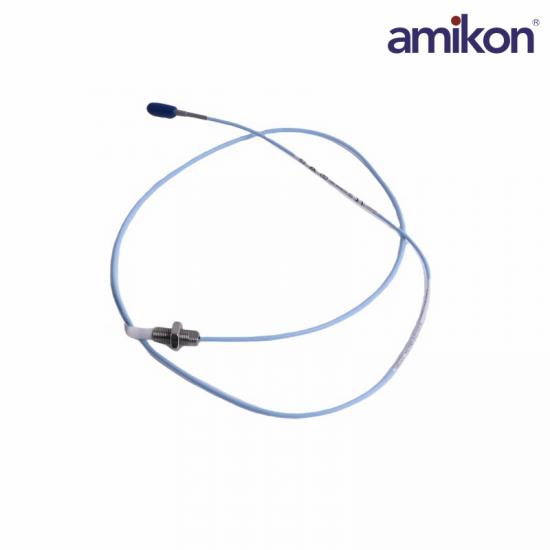

The Bently Nevada 330905-00-22-05-02-CN 3300 NSv Probe is a non-contact proximity probe designed for precise vibration and position measurements in machinery with small shaft diameters or tight installation spaces. Part of the 3300 NSv (Narrow Side-view) series by Bently Nevada, this probe is engineered for applications where traditional proximity probes cannot fit or operate efficiently. It is commonly used in gearboxes, compressors, turbines, and other rotating machinery.

The probe works in conjunction with a matching extension cable and proximitor sensor to form a complete transducer system, offering high accuracy and reliability in harsh industrial environments.
