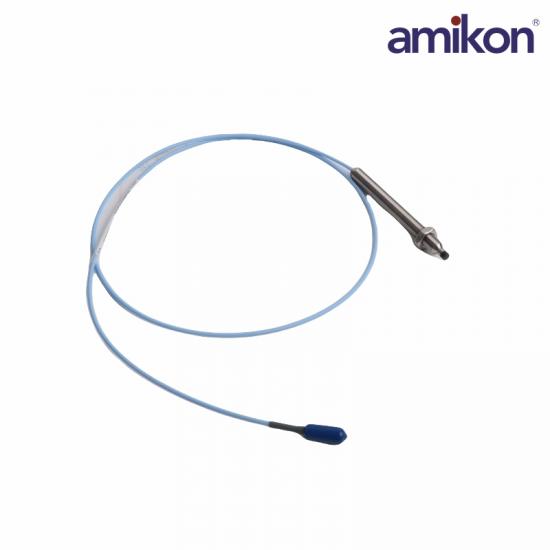

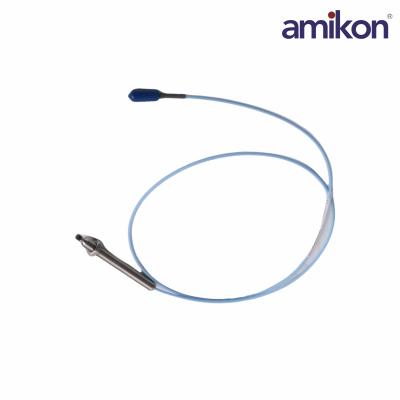

The 3300 NSv probe and extension cable are echanically and electrically compatible and interchangeable with Bently Nevada’s previous 3300 RAM proximity probe and extension cable. The NSv probe has increased chemical resistance compared to the 3300 RAM probe, which allows its use in many process compressor applications. The side-view characteristics of the 3300 NSv probe are also superior to those of the 3000 series 190 probe when gapping the 3300 NSv probe at the same distance from the probe target.

The 3300 NSv probe comes in varying probe case configurations, including armored and unarmored 1/4-28, 3⁄8-24, M8X1 and M10X1 probe threads. The reverse mount 3300 NSv probe comes standard with either 3⁄8-24 or M10X1 threads. All components of the transducer system have gold-plated brass ClickLoc connectors. ClickLoc connectors lock into place and prevent the connection from loosening. The patented TipLoc molding method provides a robust bond between the probe tip and the probe body. Bently Nevada’s patented CableLoc design provides 220 N (50 lb) of pull strength and securely attaches the probe cable to the probe tip. Connector protectors are recommended for use on the probe-to-extension cable connection, as well as on the cable-to-Proximitor Sensor connection.

Frequently Asked Questions

1. What is the overall case length of the Bently Nevada 330905-00-22-10-02-00?

This 330905-00-22-10-02-00 model features Overall Case Length Option 22, which corresponds to an overall case length of 220 mm.

2. What is the 330905-00-22-10-02-00 total length of this proximity probe?

The 330905-00-22-10-02-00 probe uses Total Length Option 10, providing a total length of 1.0 meter (39 inches) for standard industrial installations.

3. What is the 330905-00-22-10-02-00 supply sensitivity specification?

The 330905-00-22-10-02-00 probe has a supply sensitivity of less than 2 mV change, helping maintain stable output performance even with minor variations in the power supply.

4. Why is low supply sensitivity important?

A supply sensitivity of less than 2 mV change minimizes the effect of power supply fluctuations, contributing to accurate and consistent proximity measurements.

Product Applications

Oil & Gas and Petrochemical Plants: Asset status monitoring and early fault warning for centrifugal compressors, reciprocating compressors, and core pump units.

Large Air Separation and Refrigeration Plants: Centrifugal air compressors and large industrial refrigeration compressors, typically compact in size with extremely limited internal installation space, are the ideal application areas for this probe.

Power and Energy Plants: Bearing monitoring for small and medium-sized gas turbines, steam turbines, and high-speed auxiliary equipment (such as feedwater pumps and induced draft fans).

Chemical and Process Industries: Process gas compressors and pumps for high-risk media, whose high-reliability design ensures uninterrupted operation of continuous processes.
