Description：

The 3300 XL NSv Transducer System design allows it toreplace both the 3300 RAM Transducer Systems and the3000-series or 7000-series 190 Transducer System. Upgradesfrom the 3300 RAM system to the 3300 XL NSv system mayuse the existing probe, extension cable, and monitoring system with 3300 XL NSv ProximitorSensor. Upgrades from the 3000-series or7000-series Transducer System must replacethe probe, extension cable, and ProximitorSensor with NSv components.

The 3300 XL NSv Transducer System has anAverage Scale Factor of 7.87 V/mm (200mV/mil), which is the most common output foreddy current transducers. Its enhanced side-view and small target characteristics give it ashorter linear range than the Bently Nevada3300 XL-series 5 and 8 mm Transducer System.The 1.5 mm (60 mils) of linear range exceedsthe linear range of the 3000-series 190Transducer System.

Specification：

Frequently asked questions

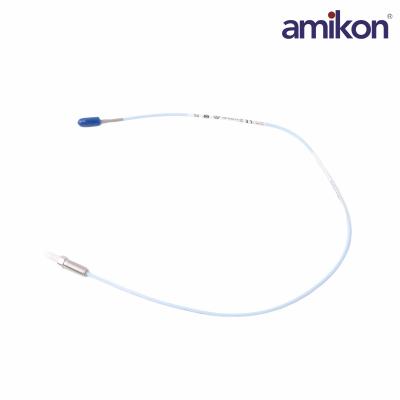

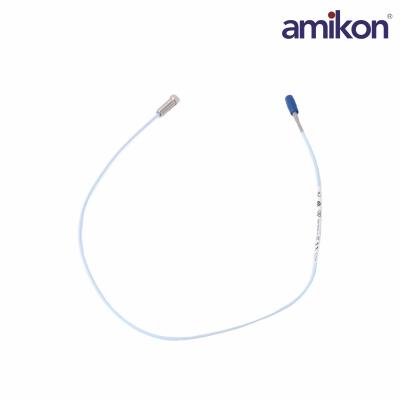

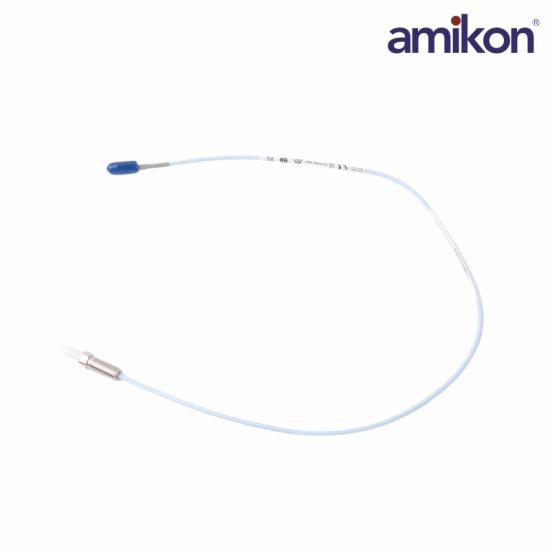

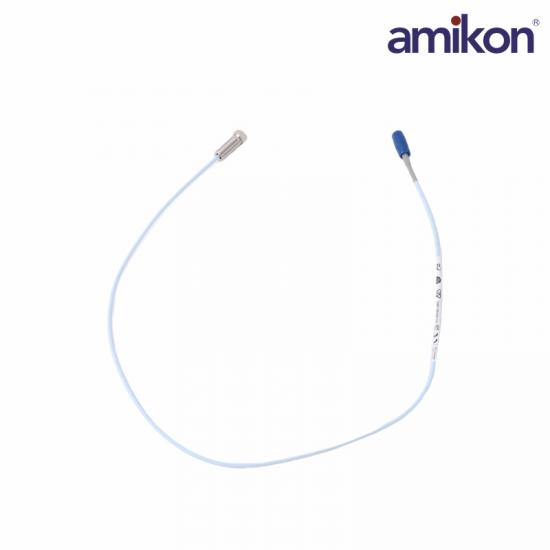

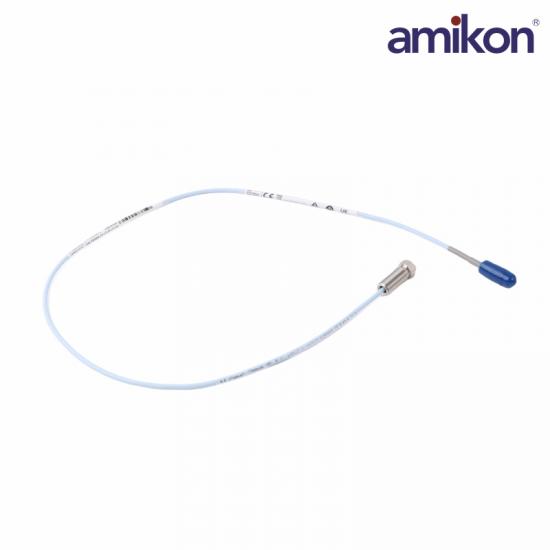

Q1: What is the Bently Nevada 330906-02-12-10-12-05?

A1: It is a 3300 NSv reverse mount proximity probe designed for non-contact measurement of shaft vibration and position, especially in installations with limited front access.

Q2: What is the 330906-02-12-10-12-05 recommended gap setting?

A2: The 330906-02-12-10-12-05 recommended gap setting is 1.0 mm (40 mils) to ensure optimal measurement accuracy.

Q3: What is the 330906-02-12-10-12-05 extension cable capacitance?

A3: The 330906-02-12-10-12-05 typical extension cable capacitance is 69.9 pF/m (21.3 pF/ft), ensuring stable signal transmission.

Q4: What is the 330906-02-12-10-12-05 output resistance?

A4: The 330906-02-12-10-12-05 output resistance is typically 50 Ω, providing reliable signal characteristics.

Q5: What is the 330906-02-12-10-12-05 total cable length?

A5: The “10” option indicates a total cable length of 1.0 meter (39 inches).

Product Applications

Oil and gas industry: pumps, compressors, turbines.

Power plants: steam turbines, generators.

Automobile manufacturing: key powertrain equipment.

Machine tool industry: precision high-speed processing equipment.
