Brand	Bently Nevada

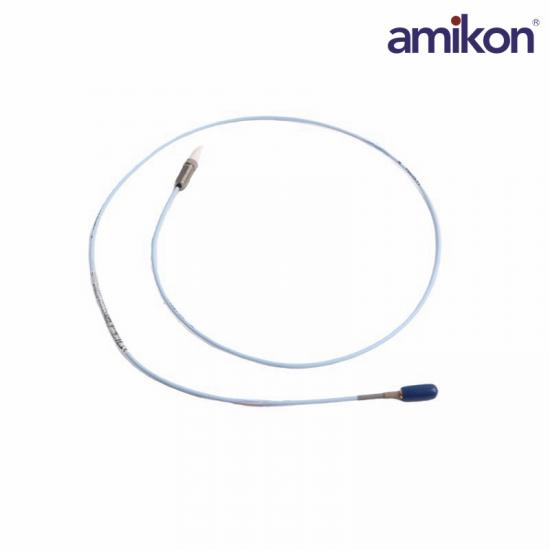

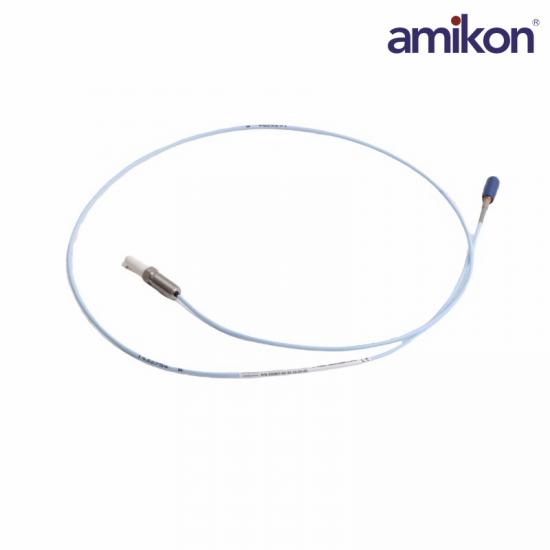

Model	Reverse Mount Probe
Product Number	330907-05-30-10-02-CN
DC Resistance (1.0m)	4.2 ± 0.5 ohms
Linear Range	1.5 mm (60 mils) from 0.25 to 1.75 mm
Recommended Gap	1.0 mm (40 mils)
Output	-1 to -13 Vdc across linear range
System Weight	14 to 150 grams (0.5 to 5.3 oz)
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 304 stainless steel
Case Torque Max	22.6 N•m (200 in•lb)
Recommended Torque	7.5 N•m (66 in•lb)
Thread Engagement Max	15 mm (M10X1)
Operating Temp	-52°C to +177°C (-62°F to +351°F)
Storage Temp	-52°C to +177°C (-62°F to +351°F)
Pressure Seal	Viton O-ring
Wire Size	0.2 to 1.5 mm² (16-24 AWG)
With Ferrules	0.25 to 0.75 mm² (18-23 AWG)

The primary uses for the 3300 XL NSv Transducer System are for areas where counterbore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

Frequently Asked Questions

Q: What is the weight range for this probe?

A: The 330907-05-30-10-02-CN system weighs 14 to 150 grams (0.5 to 5.3 oz) depending on configuration. The 1.0 meter version falls within this range.

Q: What does 05-30-10-02-CN mean?

A: 05-30 = M10X1 threads, 10 = 1.0 meter length, 02 = ClickLoc connector, CN = China approval for the 330907-05-30-10-02-CN.

Q: Can this probe handle high temperatures?

A: Yes. The 330907-05-30-10-02-CN operates from -52°C to +177°C. Avoid sustained temperatures below -34°C to protect the pressure seal.
