The 3300 XL NSv Proximity Transducer System is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The 3300 XL NSv Proximity Transducer System consists of:

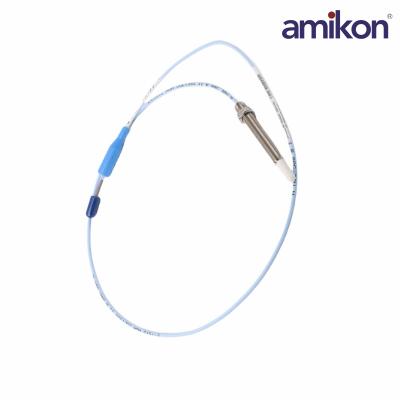

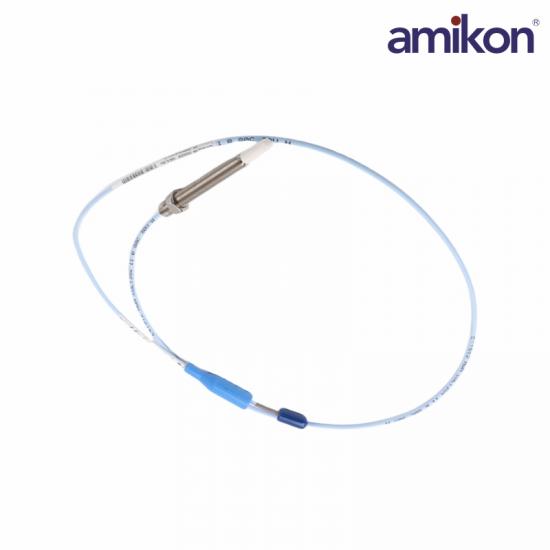

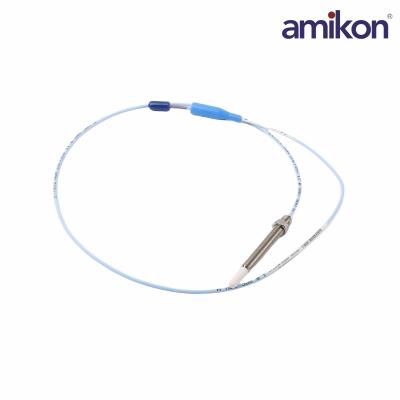

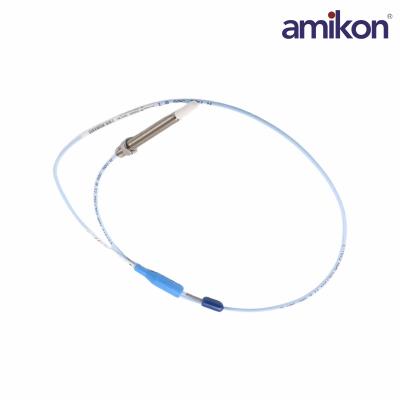

a 3300 NSv probe

a 3300 NSv extension cable

a 3300 XL NSv Proximitor Sensor(1)

The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced side-view and small target characteristics result in a shorter linear range compared to the Bently Nevada 3300 XL-series 5 and 8 mm Transducer Systems. However, the 1.5 mm (60 mils) of linear range exceeds that of the 3000-series 190 Transducer System.

Frequently Asked Questions

Q1: What is the 330908-00-16-10-02-05 used for?

A: This 3300 NSv transducer system is used for non-contact vibration and displacement measurement in rotating machinery such as turbines, compressors, and motors.

Q2: What is the 330908-00-16-10-02-05 output resistance of this system?

A: The output resistance is 50 Ω, ensuring stable signal transmission.

Q3: What is the 330908-00-16-10-02-05 extension cable capacitance?

A: The typical capacitance is 69.9 pF/m (21.3 pF/ft), important for maintaining signal integrity.

Q4: What material is used for the 330908-00-16-10-02-05 probe tip?

A: The 330908-00-16-10-02-05 probe tip is made of polyphenylene sulfide (PPS), offering excellent thermal and chemical resistance.

Q5: What is the 330908-00-16-10-02-05 frequency response range?

A: The system operates within 0 to 10 kHz, suitable for most industrial vibration monitoring applications.

Product Applications

Oil and Gas: Used for monitoring the shaft vibration and shaft displacement of compressors, small pump units and auxiliary equipment.

Electric Power Industry: Detecting the rotor position in the auxiliary systems of gas turbines or steam turbines (such as water supply pumps, fans).

Petrochemical and Chemical Industry: Monitoring of reaction vessel stirring devices or centrifuges in factories to ensure the mechanical stability of the production process.

General Machinery Manufacturing: Applied to any high-speed equipment that requires the detection of radial vibration or axial position.

Main technical functions:

Axial position (thrust) measurement: Measures the axial displacement of the shaft.

Radial vibration monitoring: Detects the radial movement of the shaft caused by imbalance, misalignment, etc.

Speed measurement: Provides precise key signal.
