The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring system with 3300 XL NSv Proximitor Sensor. Upgrades from the 3000-series or 7000-series Transducer System must replace the probe, extension cable, and Proximitor Sensor with NSv components.

The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced sideview and small target characteristics give it a shorter linear range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System. The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer System.

Frequently Asked Questions

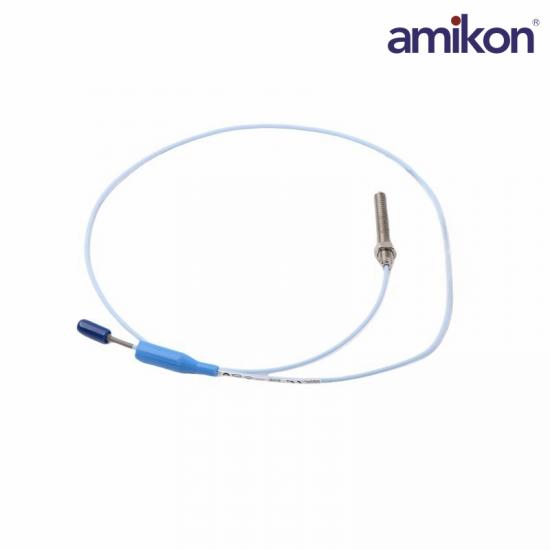

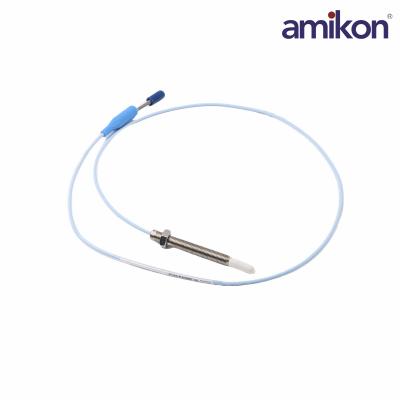

Q1: What is the Bently Nevada 330908-00-40-10-02-CN Proximity Probe?

A1: It is a 3300 NSv proximity probe designed for non-contact shaft vibration and displacement monitoring in compact rotating machinery applications.

Q2: What thread type does this probe use?

A2: The 330908-00-40-10-02-CN probe uses a 3/8-24 UNF thread configuration.

Q3: What does the 330908-00-40-10-02-CN unthreaded length option “00” indicate?

A3: The “00” option specifies an unthreaded length of 0 mm.

Q4: What is the 330908-00-40-10-02-CN case length of this probe?

A4: The case length option “40” corresponds to 4.0 inches (101.6 mm).

Q5: What is the 330908-00-40-10-02-CN total probe length?

A5: The 330908-00-40-10-02-CN total length option “10” indicates a probe length of 1.0 metre (39 inches).

Product Applications

Oil and Gas: Monitors shaft vibration and axial displacement in high-speed centrifugal compressors, small steam turbines, and expanders.

Power Industry: Used in auxiliary rotating equipment of generator sets, such as feed pumps and cooling fans.

Chemical/Pharmaceutical: Monitors the operating status of centrifuges. The NSv series probes, with their small tip diameter, are ideal for installation inside these compact devices.

Water Treatment: Used for preventative maintenance of large industrial water pumps to prevent major accidents caused by bearing wear.
