The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).It is primarily used in the following applications on fluid-film bearing machines where a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals

Frequently Asked Questions

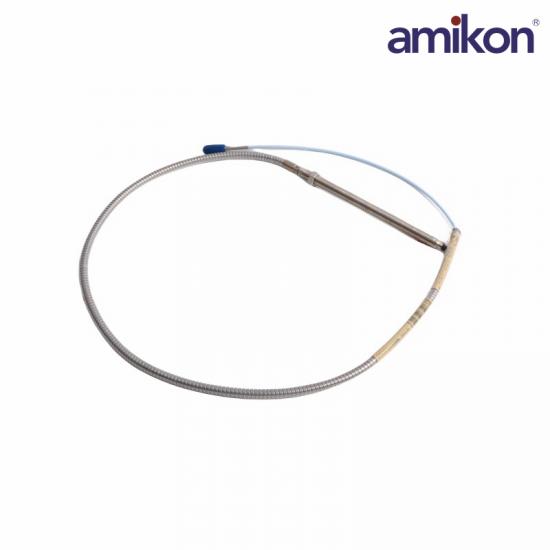

Q1: What is the 330909-00-40-05-02-05?

A1: The 330909-00-40-05-02-05 is a Bently Nevada 3300 NSv proximity probe with armored construction, designed for precise vibration and shaft displacement monitoring in industrial machinery.

Q2: What does the “05” approval option mean?

A2: The -05 indicates multiple international approvals, making it suitable for use in various regions and compliance environments.

Q3: What is the 330909-00-40-05-02-05 operating temperature range?

A3: The probe operates within −34°C to +177°C (−30°F to +351°F).

Q4: What is the 330909-00-40-05-02-05 output sensitivity?

A4: The probe provides an output of 7.87 V/mm (200 mV/mil), ensuring high measurement accuracy.

Product Applications

Oil and gas industry: Axial vibration monitoring for industrial compressors and pumps.

Electricity industry: Monitoring for steam turbines, hydro turbines and generators.

Manufacturing and petrochemical plants: For high-speed gearboxes, centrifuges and other precision rotating equipment.
