The 3300 XL NSv Proximity Transducer System is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The 3300 XL NSv Proximity Transducer System consists of:

a 3300 NSv probe

a 3300 NSv extension cable

a 3300 XL NSv Proximitor Sensor(1)

The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

Frequently Asked Questions

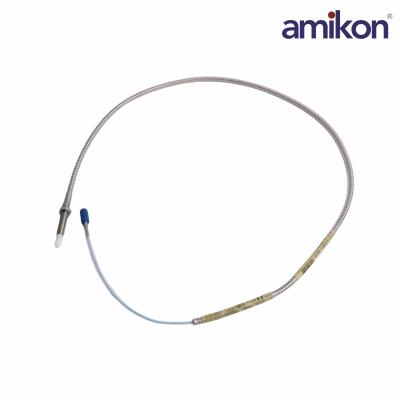

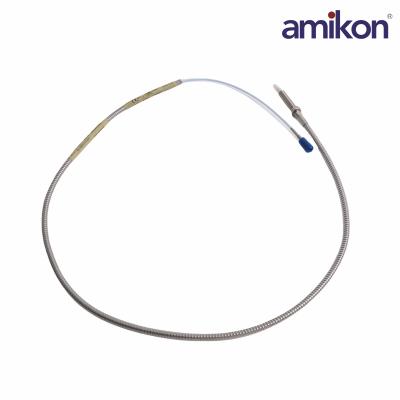

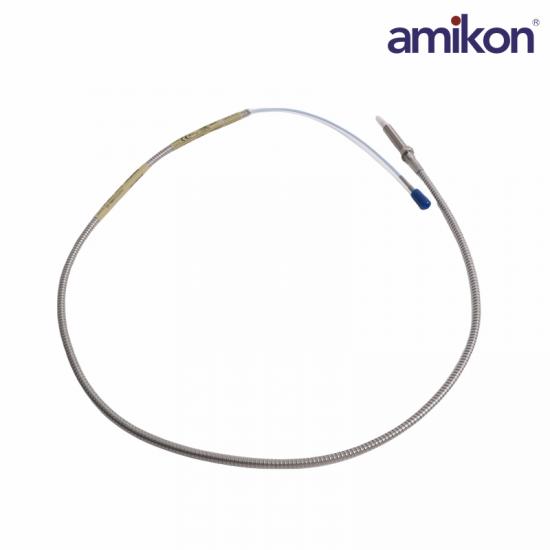

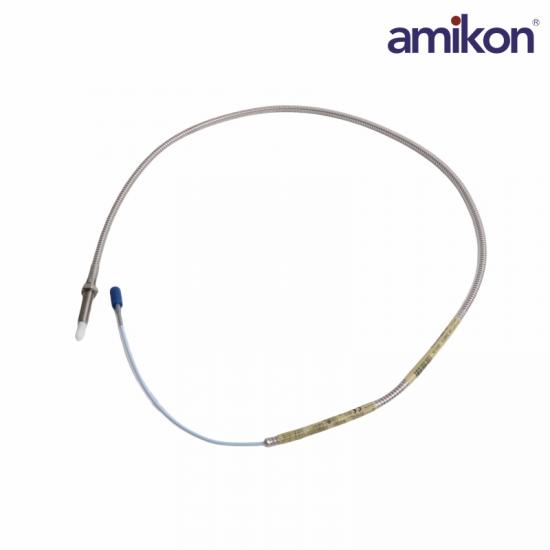

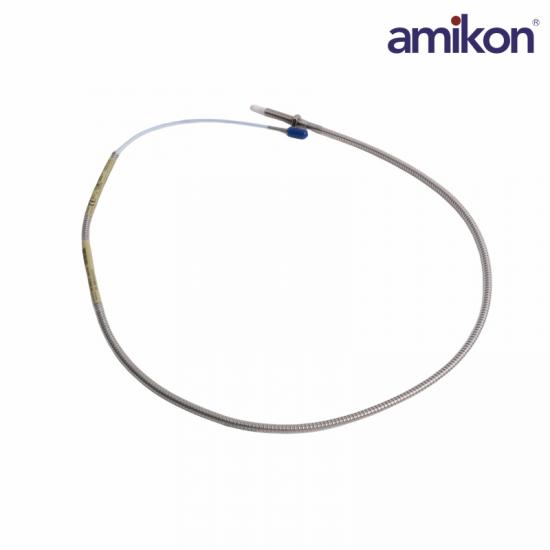

Q1: What is the Bently Nevada 330909-00-40-50-02-CN Proximity Probe?

A1: It is a 3300 NSv proximity probe designed for non-contact shaft vibration and displacement monitoring in compact industrial machinery applications.

Q2: What does the 330909-00-40-50-02-CN unthreaded length option “00” indicate?

A2: The “00” option specifies an unthreaded length of 0.0 inches.

Q3: What is the 330909-00-40-50-02-CN case length of this probe?

A3: The 330909-00-40-50-02-CN case length option “40” corresponds to 4.0 inches (101.6 mm).

Q4: What is the 330909-00-40-50-02-CN total probe length?

A4: The total length option “50” indicates a probe length of 5.0 metres (16.4 feet).

Q5: What connector type is used on this model?

A5: The 330909-00-40-50-02-CN probe uses a miniature coaxial ClickLoc connector for secure and reliable signal connection.

Product Applications

Thermal power plant: Used for monitoring high-frequency vibrations and axial displacements of steam turbines, generators, and feedwater pumps.

Wind power generation: Monitors the condition of the main shaft and gearbox of large wind turbines.

Nuclear power plant: Conducts non-contact state monitoring of circulating water pumps and core turbine equipment.

Refinery/chemical plant: Monitors the shaft vibrations of large centrifugal compressors, reciprocating compressors, and expanders to prevent mechanical failures that could lead to gas leakage.

Large fans and blowers: Monitors the operational health of core power equipment such as blast furnaces blowers.
