Description：

The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems. It is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 51 mm (2 in) or axial position on flattargets smaller than 15 mm (0.6 in). It is primarily used in thefollowing applications on fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

Specification：

Frequently asked questions

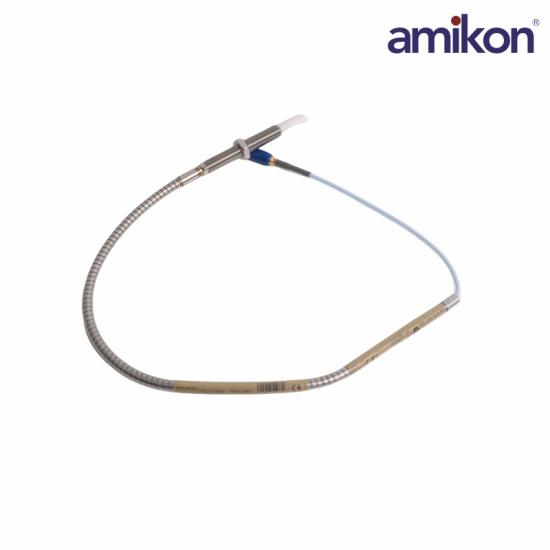

Q1: What is the Bently Nevada 330910-00-08-10-02-CN used for?

A1:The Bently Nevada 330910-00-08-10-02-CN is a 3300 NSv Proximity Probe used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery. It is commonly used in machinery protection and condition monitoring systems.

Q2: What does Overall Case Length Code 08 indicate?

A2:The 330910-00-08-10-02-CN Code 08 option specifies an overall case length of 80 mm, making the probe suitable for installations that require additional mounting depth while maintaining a compact NSv profile.

Q3: What does Total Length Code 10 mean?

A3:The 330910-00-08-10-02-CN Code 10 option indicates a total length of 1.0 meter (39 inches), providing flexibility for machinery monitoring applications and cable routing requirements.

Q4: What is the recommended gap setting for this 330910-00-08-10-02-CN probe?

A4:The 330910-00-08-10-02-CN recommended gap setting is 1.0 mm (40 mils). Maintaining this gap helps ensure optimal probe performance and measurement accuracy.

Product Applications

Oil and Gas (Process Compressors): Widely used for condition monitoring of centrifugal air compressors, screw compressors, and axial compressors.

Power and Energy: Used to monitor the operating status of small and medium-sized steam turbines and hydroelectric generator sets.

Petrochemical, Chemical, and Metallurgical Industries: Used to monitor vibration data of critical pumps, large fans, and other high-value rotating machinery.
