Description：

The 3300 XL NSv Transducer System design allows it toreplace both the 3300 RAM Transducer Systems and the3000-series or 7000-series 190 Transducer System. Upgradesfrom the 3300 RAM system to the 3300 XL NSv system mayuse the existing probe, extension cable, and monitoring system with 3300 XL NSv Proximitor Sensor. Upgrades from the 3000-series or7000-series Transducer System must replacethe probe, extension cable, and Proximitor

Sensor with NSv components.

The 3300 XL NSv Transducer System has anAverage Scale Factor of 7.87 V/mm (200mV/mil), which is the most common output foreddy current transducers. Its enhanced side-view and small target characteristics give it ashorter linear range than the Bently Nevada3300 XL-series 5 and 8 mm Transducer System.The 1.5 mm (60 mils) of linear range exceedsthe linear range of the 3000-series 190Transducer System.

Specification：

Frequently asked questions

Q1: What is the Bently Nevada 330910-00-10-10-02-CN used for?

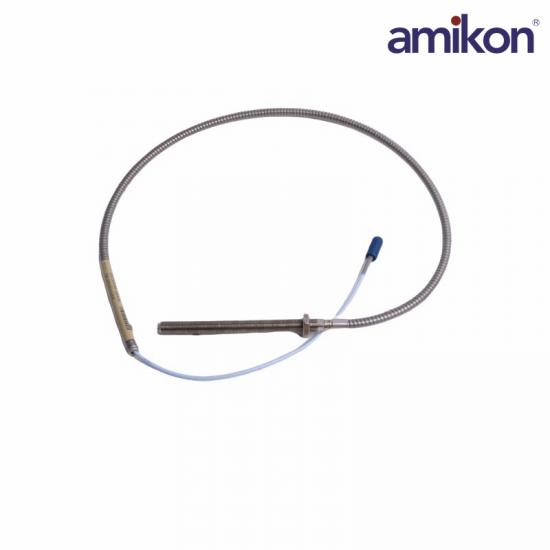

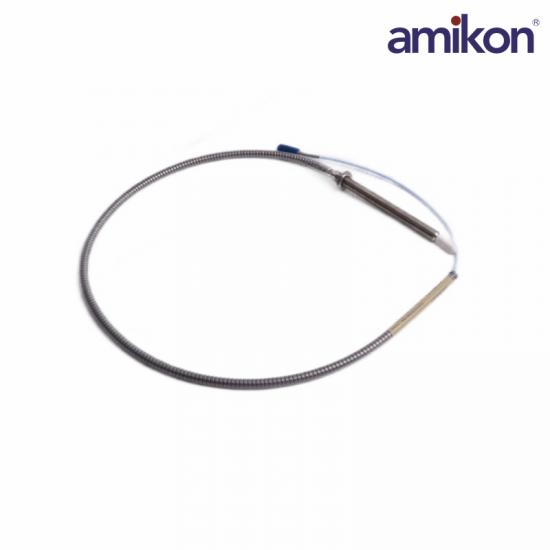

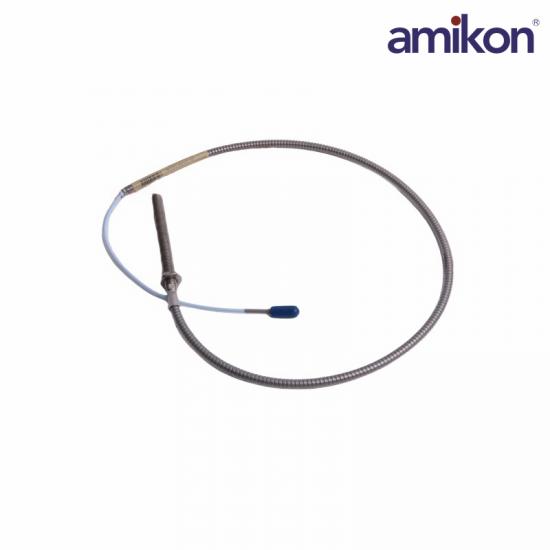

A1:The Bently Nevada 330910-00-10-10-02-CN is a 3300 NSv Proximity Probe designed for non-contact measurement of shaft vibration, displacement, and position in rotating machinery. Its compact NSv design makes it ideal for installations with limited mounting space.

Q2: What does Overall Case Length Code 10 indicate?

A2:The 330910-00-10-10-02-CN Code 10 option specifies an overall case length of 100 mm, providing additional installation flexibility for machinery requiring a longer probe body.

Q3: What is the linear measurement range of the 330910-00-10-10-02-CN probe?

A3:The 330910-00-10-10-02-CN probe offers a linear range of 1.5 mm (60 mils), enabling accurate measurement of shaft movement within the specified operating range.

Q4: What power supply is required for the 330910-00-10-10-02-CN probe?

A4:The 330910-00-10-10-02-CN 3300 NSv Proximity Probe requires a supply voltage of -17.5 VDC to -26 VDC for proper operation within the proximity transducer system.

Product Applications

Oil and Gas (Process Gas Compressors): Monitoring process gas compressors and gearboxes.

Petrochemicals and Chemicals: Monitoring high-pressure centrifugal air compressors and refrigeration compressors.

Power Industry: Auxiliary equipment for steam turbine units, expanders, and other hydrodynamic bearing machinery with demanding installation conditions.
