The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems. It is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 51 mm (2 in) or axial position on flattargets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:·

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

Frequently Asked Questions

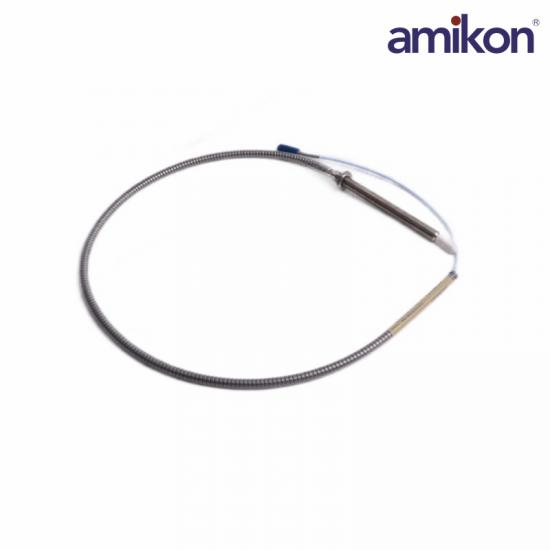

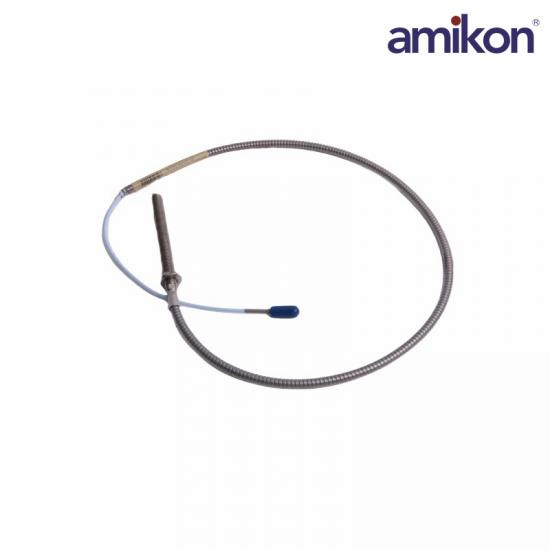

Q1: What is the Bently Nevada 330910-00-12-05-02-00 Proximity Probe used for?

A1: It is used for non-contact measurement of shaft vibration, shaft displacement, and shaft position in rotating machinery monitoring and protection systems.

Q2: What is the overall case length of the 330910-00-12-05-02-00 probe?

A2: Overall Case Length Option 12 corresponds to 120 mm.

Q3: What is the total length of the 330910-00-12-05-02-00 probe system?

A3: Total Length Option 05 corresponds to 0.5 meter (20 inches).

Q4: What connector and cable type does this 330910-00-12-05-02-00 probe use?

A4: Connector and Cable-Type Option 02 includes a miniature coaxial ClickLoc connector with a standard cable.

Product Applications

Oil & Gas/Petrochemical: Used for monitoring process gas compressors, centrifugal air compressors, and refrigeration compressors.

Power & Industrial Manufacturing: Measures minute radial vibrations (for shafts smaller than 51 mm) and axial/thrust displacements (for surfaces smaller than 15 mm).

Rotating Machinery Monitoring: Supports tachometer/zero speed measurement and keyphasor signal extraction.
