Description：

The 3300 XL NSv Transducer System design allows it toreplace both the 3300 RAM Transducer Systems and the3000-series or 7000-series 190 Transducer System. Upgradesfrom the 3300 RAM system to the 3300 XL NSv system mayuse the existing probe, extension cable, and monitoring system with 3300 XL NSv ProximitorSensor. Upgrades from the 3000-series or7000-series Transducer System must replacethe probe, extension cable, and ProximitorSensor with NSv components.

The 3300 XL NSv Transducer System has anAverage Scale Factor of 7.87 V/mm (200mV/mil), which is the most common output foreddy current transducers. Its enhanced side-view and small target characteristics give it ashorter linear range than the Bently Nevada3300 XL-series 5 and 8 mm Transducer System.The 1.5 mm (60 mils) of linear range exceedsthe linear range of the 3000-series 190Transducer System.

Specification：

Frequently asked questions

Q1: What is the 330910-00-16-10-01-00?

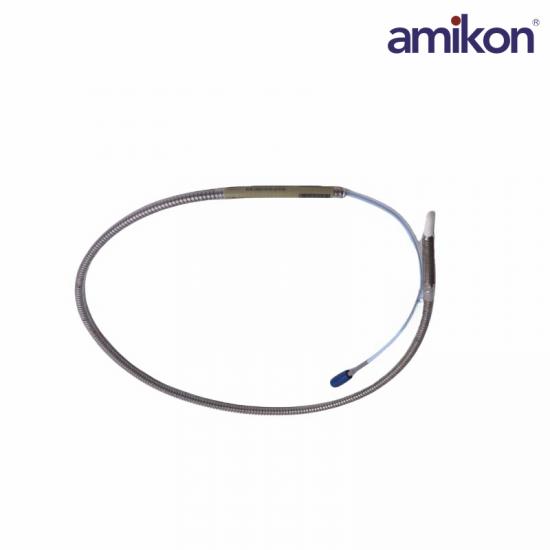

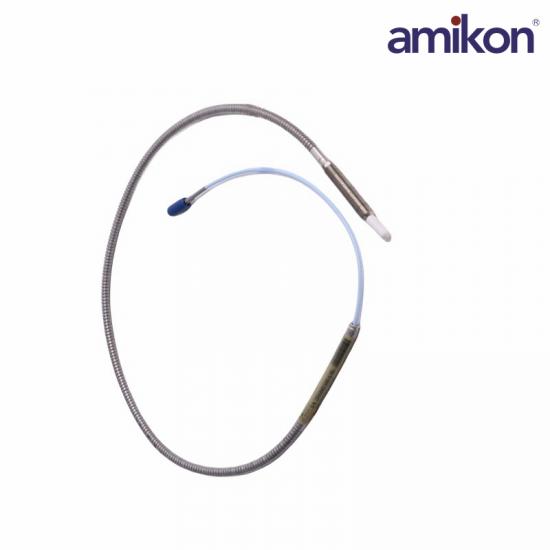

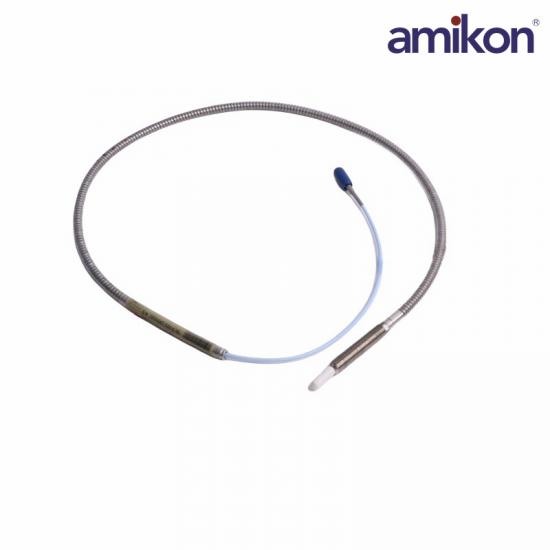

A1: The 330910-00-16-10-01-00 is a Bently Nevada 3300 NSv™ proximity probe, designed for accurate vibration and shaft displacement monitoring in rotating machinery.

Q2: What does the “330910” series indicate?

A2: It identifies a 3300 NSv probe with M10 × 1 thread and armored construction, suitable for harsh industrial environments.

Q3: What does the “-00” option represent?

A3: The -00 indicates no unthreaded length (0.0 inches).

Q4: What does the “-16” option indicate?

A4: The -16 corresponds to an overall case length of 1.6 inches.

Q5: What does the “-10” option represent?

A5: The -10 indicates a total cable length of 1.0 meter.

Product Applications

Separation and Compressor Industry: Widely used in centrifugal air compressors, process gas compressors, and refrigeration compressors.

Petrochemicals: Monitoring various fluid power bearing machinery that cannot be used with traditional 5mm or 8mm probes due to harsh installation conditions.

Electricity and Energy: Used to monitor small turbine or gas turbine shaft vibrations with diameters less than 51 millimeters (2 inches).

General Industrial Machinery: Applicable for monitoring the interior of any enclosures with narrow spaces and restricted reverse countersink installation.

Main functional features

Narrow Side View: Due to its unique "narrow field of view" characteristic, it is insensitive to the surrounding metal side walls and is suitable for installation in reverse countersink holes or narrow gaps.

Small target measurement: Capable of precisely measuring radial vibration as small as 30 millimeters in shaft diameter, or axial displacement on a 13 millimeter planar target.

High reliability: Utilizing TipLoc molding technology and CableLoc cable fixation design, it has stronger chemical resistance and physical tensile strength.
