The 3300 NSv probe comes in varying probe case configurations, including armored and unarmored 1/4-28, 3⁄8-24, M8X1, and M10X1 probe threads. The reverse mount 3300 NSv probe comes standard with either 3⁄8-24 or M10X1 threads. All components of the transducer system have gold-plated brass ClickLoc connectors. ClickLoc connectors lock into place and prevent the connection from loosening. The patented TipLoc molding method provides a robust bond between the probe tip and the probe body. Bently Nevada’s patented CableLoc design provides 220 N (50 lb) of pull strength and securely attaches the probe cable to the probe tip. Connector protectors are recommended for use on the probe-to-extension cable connection, as well as on the cable-to-Proximitor Sensor connection. Connector protectors prevent most liquids from entering into the ClickLoc connectors and adversely affecting the electrical signal(2).

Notes: (1) Proximitor Sensors are supplied by default from the factory calibrated to AISI 4140 steel. Calibration to other target materials is available upon request. (2) Silicone tape is also provided with each 3300 NSv extension cable and can be used instead of connector protectors. Silicone tape is not recommended in applications where the probe-to-extension cable connection will be exposed to turbine oil.

Frequently Asked Questions

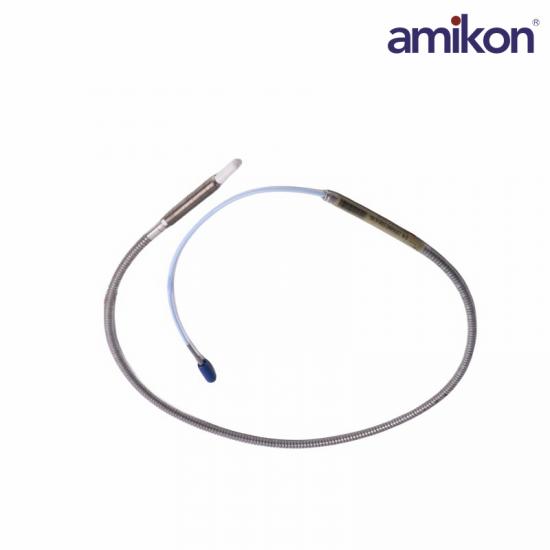

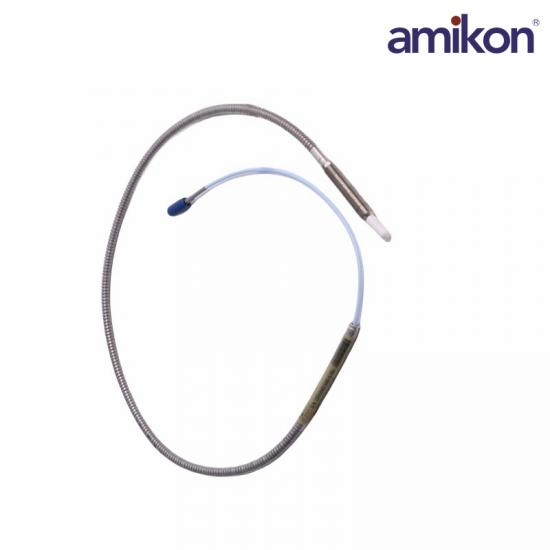

Q1: What is the Bently Nevada 330910-00-18-05-01-00?

A1: It is a proximity probe used for non-contact measurement of shaft vibration and displacement in rotating machinery monitoring systems.

Q2: What does the “18” option represent?

A2: “18” indicates an overall case length of 1.8 inches.

Q3: What is the 330910-00-18-05-01-00 total cable length?

A3: The “05” option specifies a total cable length of 0.5 meters (approximately 20 inches).

Q4: What is the 330910-00-18-05-01-00 main function of this proximity probe?

A4: It measures shaft position and vibration without physical contact, enabling accurate condition monitoring and machinery protection.

Q5: Where is the 330910-00-18-05-01-00 probe typically used?

A5: It is commonly used in turbines, compressors, pumps, and motors across industries such as oil & gas, power generation, and manufacturing.

Product Applications

Electric power industry: Used for monitoring shaft vibration, bearing vibration and axial displacement of steam turbines, hydro turbines and power generation units.

Petroleum and natural gas (petrochemicals): Often applied to long-term vibration monitoring of key equipment such as high-speed centrifugal air compressors, reciprocating compressors, main pumps, etc.

Chemical industry: On rotating equipment such as pumps, fans and motors in chemical processes, monitoring vibrations caused by changes in medium or changes in working frequency.

Metallurgy and steel: Used for vibration monitoring of blast furnace blowers, oxygen compressors and drive systems of strip rolling mills in high-temperature and high-pressure environments.

Industrial machinery manufacturing: Used in small and medium-sized water pumps, high-speed motors or high-precision processing machines that require precise displacement measurement, especially in narrow or specific detection gap scenarios where traditional eddy current probes cannot be installed.
