Description：

The 3300 XL NSv Proximity Transducer system is intended foruse with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The 3300 XL NSv Proximity Transducer System consists of:

a 3300 NSv probe

a 3300 NSv extension cable

a 3300 XL NSv Proximitor Sensor(1)

The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems. It is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 51 mm (2 in) or axial position on flattargets smaller than 15 mm (0.6 in). It is primarily used in thefollowing applications on fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements·

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

Specification：

Frequently asked questions

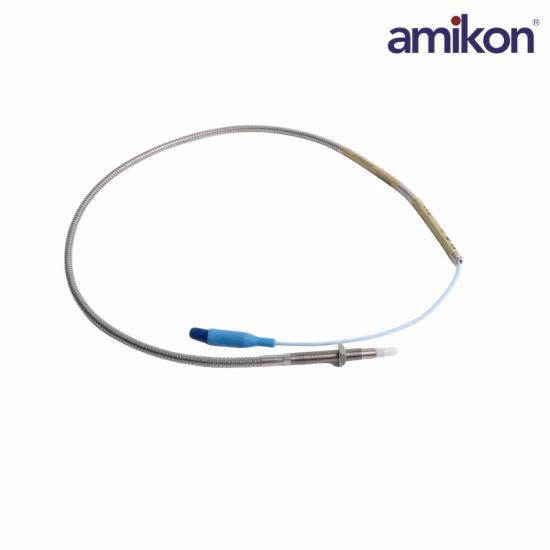

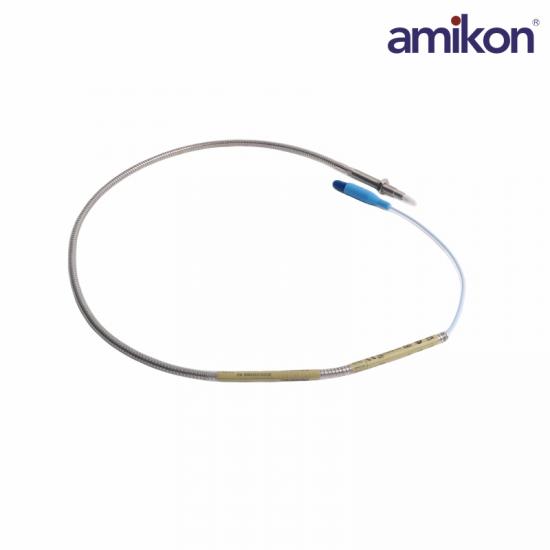

Q1: What is the Bently Nevada 330910-00-18-10-02-CN 3300 NSv Proximity Probe used for?

A1: It is designed for non-contact measurement of shaft vibration, shaft position, and displacement in rotating machinery monitoring and protection systems.

Q2: What is the 330910-00-18-10-02-CN frequency response range of this proximity probe?

A2: The 330910-00-18-10-02-CN probe provides a frequency response from 0 to 10 kHz, making it suitable for a wide range of vibration monitoring applications.

Q3: What is the operating temperature range of the 330910-00-18-10-02-CN probe?

A3: The 330910-00-18-10-02-CN operating temperature range is -34°C to +177°C, allowing reliable operation in demanding industrial environments.

Q4: What is the overall case length of the 330910-00-18-10-02-CN probe?

A4: Overall Case Length Option 18 corresponds to 180 mm.

Q5: What is the total length of the 330910-00-18-10-02-CN probe system?

A5: Total Length Option 10 corresponds to 1.0 meter (39 inches).

Product Applications

Oil & Gas & Petrochemical: Used for monitoring large, high-speed rotating compressors, centrifuges, etc.

Power Industry: Monitors bearing vibration in turbine generator sets in power plants.

Machinery Manufacturing: Suitable for small hydrodynamic bearing machines, capable of accurately measuring radial vibration and axial displacement.
