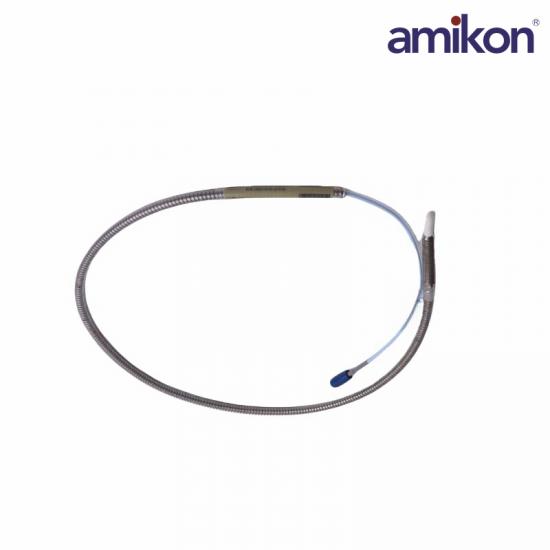

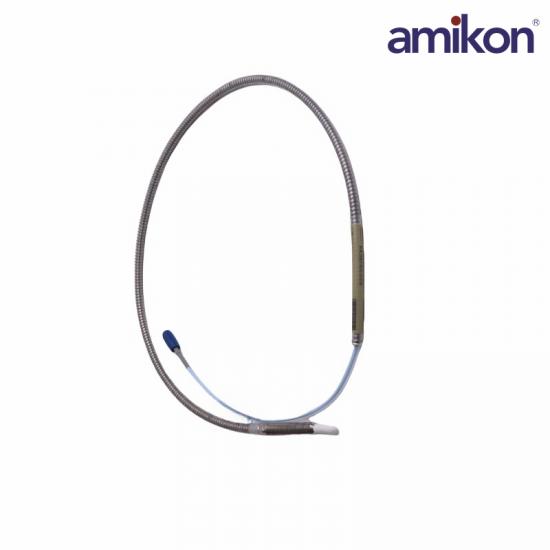

The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems. It is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 51 mm (2 in) or axial position on flattargets smaller than 15 mm (0.6 in). It is primarily used in thefollowing applications on fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:

Radial vibration and radial position measurements·

Axial (thrust) position measurements·

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

Frequently Asked Questions

Q1: What is the Bently Nevada 330910-00-19-05-02-00 Transducer System used for?

A1: The 330910-00-19-05-02-00 is a proximity transducer system designed for non-contact measurement of shaft vibration, shaft position, shaft displacement, and other critical parameters in rotating machinery monitoring and protection systems.

Q2: What is the overall case length of the 330910-00-19-05-02-00 probe?

A2: Overall Case Length Option -19 corresponds to 190 mm.

Q3: What is the total cable length of the 330910-00-19-05-02-00 system?

A3: Total Cable Length Option -05 corresponds to 0.5 meter (20 inches).

Q4: What does Agency Approval Option -00 indicate?

A4: Agency Approval Option -00 indicates that no certification or special agency approval is required for this configuration.

Product Applications

Oil and Gas: High-pressure process compressors in refineries and offshore platforms.

Power Industry: Vibration monitoring of power plant auxiliary equipment, steam turbines, and generator shafts.

Chemical Industry: Bearing displacement and vibration monitoring of high-speed centrifugal pumps and heavy-duty compressors.
