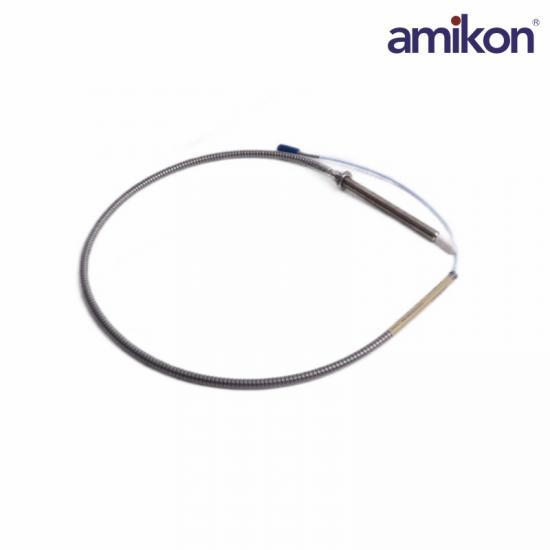

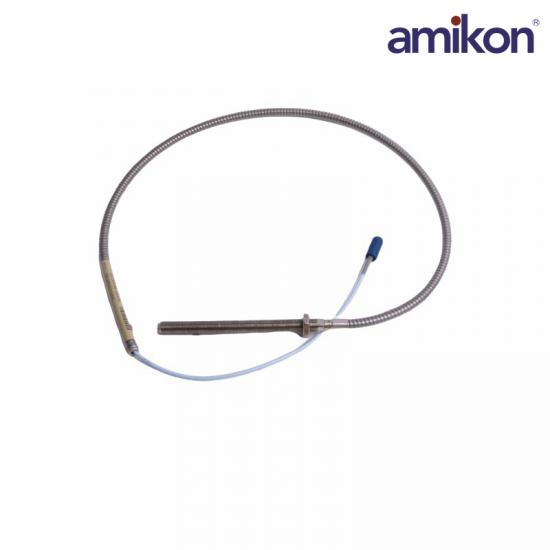

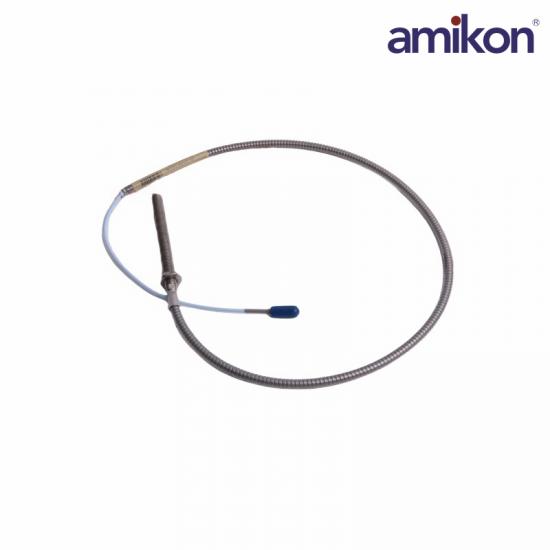

Manufacturer:Bently Nevada

Model:330910-00-21-10-02-00

Type:Proximity Probes

Unthreaded Length Option (-00): 0 mm

Overall Case Length Option (-21): 210 mm.

Total Length Option (-10): 1.0 meter (39 in)

Connector and Cable Type Option (-02): Miniature coaxial ClickLoc connector with standard cable.

Agency Approval Option (-00): None required

Output Resistance: 50 Ω

Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft), typical

Recommended Gap Setting: 1.0 mm (40 mils)

Deviation from Best Fit Straight Line (DSL): Less than ±0.06 mm (±2.3 mils)

Connector Material: Gold-plated brass

Probe Tip Material: Polyphenylene sulfide (PPS)

Probe Case Material: AISI 304 stainless steel (SST)

Minimum Bend Radius (with or without SST armor): 25.4 mm (1.0 in)

Operating Temperature: -52°C to +177°C (-62°F to +351°F)

Storage Temperature: -52°C to +177°C (-62°F to +351°F)

The 3300 NSv probe and extension cable are mechanically and electrically compatible and interchangeable with Bently Nevada’s previous 3300 RAM proximity probe and extension cable. The NSv probe offers increased chemical resistance compared to the 3300 RAM probe, making it suitable for many process compressor applications. The side-view characteristics of the 3300 NSv probe are also superior to those of the 3000-series 190 probe when gapping the 3300 NSv probe at the same distance from the probe target.

The 3300 NSv probe is available in various probe case configurations, including armored and unarmored versions, with probe thread sizes of 1/4-28, 3⁄8-24, M8X1, and M10X1. The reverse mount 3300 NSv probe is standard with either 3⁄8-24 or M10X1 threads. All components of the transducer system feature gold-plated brass ClickLoc connectors. These connectors lock into place, preventing the connection from loosening. The patented TipLoc molding method ensures a robust bond between the probe tip and the probe body. Bently Nevada’s patented CableLoc design provides 220 N (50 lb) of pull strength and securely attaches the probe cable to the probe tip.

Connector protectors are recommended for use on both the probe-to-extension cable connection and the cable-to-Proximitor Sensor connection.

Frequently Asked Questions

Q1: What is the Bently Nevada 330910-00-21-10-02-00 Proximity Probe used for?

A: The 330910-00-21-10-02-00 is a non-contact proximity probe used for monitoring shaft vibration, shaft position, and displacement in rotating machinery.

Q2: What is the total length of the 330910-00-21-10-02-00 probe assembly?

A: The -10 option specifies a total length of 1.0 meter (39 inches), providing flexibility for installation in various machinery configurations.

Q3: What is the output resistance of the 330910-00-21-10-02-00?

A: The 330910-00-21-10-02-00 probe system features an output resistance of 50 Ω, helping ensure reliable signal transmission and compatibility with monitoring equipment.

Q4: What is the 330910-00-21-10-02-00 extension cable capacitance of this probe?

A: The 330910-00-21-10-02-00 extension cable has a typical capacitance of 69.9 pF/m (21.3 pF/ft).

Product Applications

Oil and Gas: Monitoring of high-speed centrifugal compressors and process gas compressors in explosion-proof areas, refineries, and offshore platforms.

Power Industry: Monitoring of shaft vibration and axial displacement in large power plants, gas turbines, and steam turbine units.

Refrigeration and Air Compression: Monitoring of minute clearances and high-speed rotating components in centrifugal air compressors and refrigeration units.

Chemical and Petrochemical Industries: Condition monitoring of various high-speed, hydrodynamic bearing-equipped large pumps and compressors.
