Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
Coo|
Specification |
Details |
|
Manufacturer |
Bently Nevada |
|
Model |

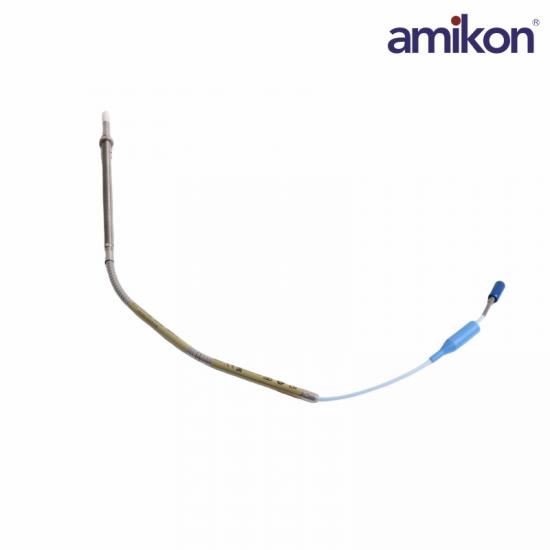

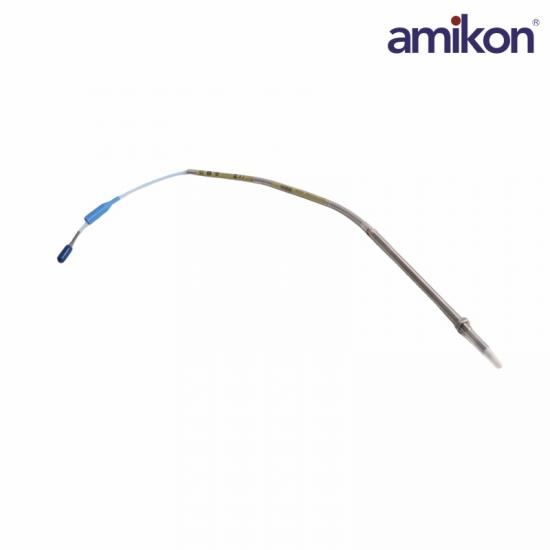

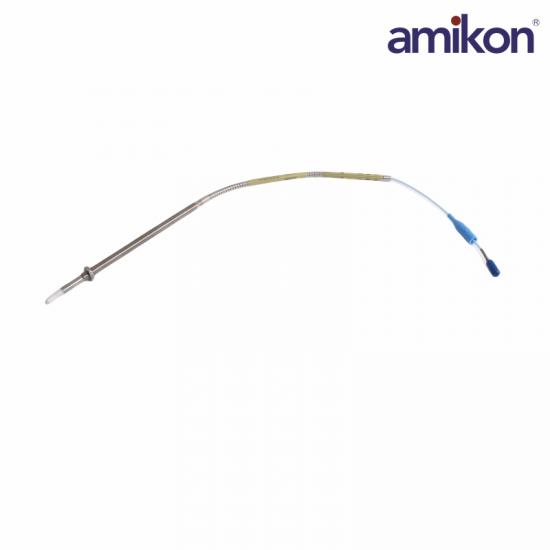

330910-00-23-10-02-00 |
|
Type |
Proximity Probes |
|
Extension Cable Material |
75 Ω coaxial, fluoroethylene propylene (FEP) insulated |
|
Proximitor Sensor Material |
A380 aluminum |
|
System Length |
5 or 7 meters including extension cable |
|
Connector Material |
Gold-plated brass |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Recommended Torque |
Finger tight |
|
Maximum Torque |
0.56 N•m (5 in•lb) |
|
Probe Weight |
Approximately 14 to 150 g (0.5 to 5.3 oz) |
|
Extension Cable Weight |
45 g/m (0.5 oz/ft) |
|
Armored Extension Cable Weight |
64 g/m (0.7 oz/ft) |
|
Proximitor Sensor Weight |
255 g (9 oz) |
The 3300 NSv probe is available in various probe case configurations, including armored and unarmored versions, with probe thread sizes of 1/4-28, 3⁄8-24, M8X1, and M10X1. The reverse mount 3300 NSv probe is standard with either 3⁄8-24 or M10X1 threads. All components of the transducer system feature gold-plated brass ClickLoc connectors, which lock into place to prevent the connection from loosening. The patented TipLoc molding method ensures a robust bond between the probe tip and the probe body. Additionally, Bently Nevada's patented CableLoc design offers 220 N (50 lb) of pull strength, securely attaching the probe cable to the probe tip.
It is recommended to use connector protectors on both the probe-to-extension cable connection and the cable-to-Proximitor Sensor connection. These protectors help prevent most liquids from entering the ClickLoc connectors, which could adversely affect the electrical signal.
Notes: (1) Proximitor Sensors are factory-calibrated to AISI 4140 steel by default. Calibration to other target materials is available upon request.
(2) Silicone tape is also provided with each 3300 NSv extension cable and can be used instead of connector protectors. However, silicone tape is not recommended for applications where the probe-to-extension cable connection will be exposed to turbine oil.
