Weight: 0.35kg

Dimensions: 12x6x8cm

Operating Temperature: -52°C to +177°C (-62°F to +351°F)

Storage Temperature: -52°C to +177°C (-62°F to +351°F)

Total Length Option: 1.0 meter (39 in)

Connector and Cable-Type Option: Miniature coaxial ClickLoc connector with connector protector, standard cable

Agency Approval Option: Not required

Unthreaded Length Option(Minimum unthreaded length) : 0 mm

Probe Case Thread: 3/8-24

Maximum Length of Thread Engagement: 0.563 in

Extension Cable Material: 75 Q triaxial, fluoroethylene propylene (FEP) insulated

Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage

Output Resistance:50 Ω

Maximum Rated: 33.9 N•m (300 in•lbf)

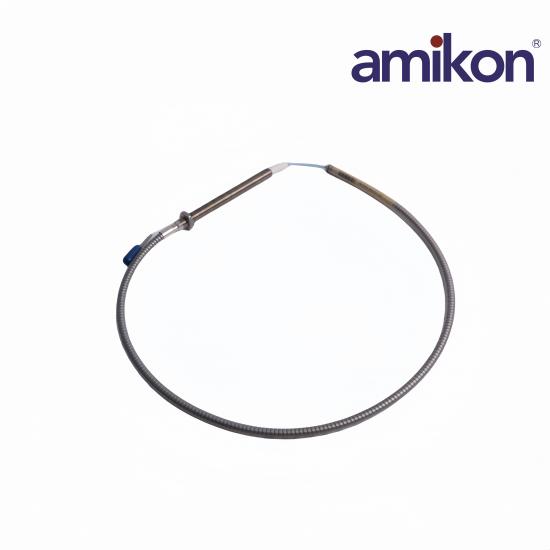

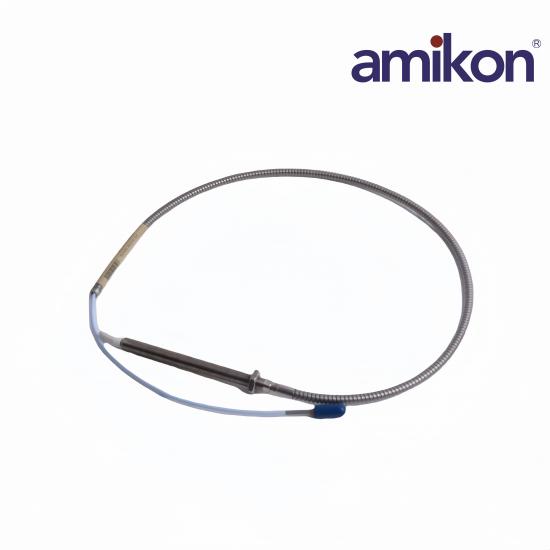

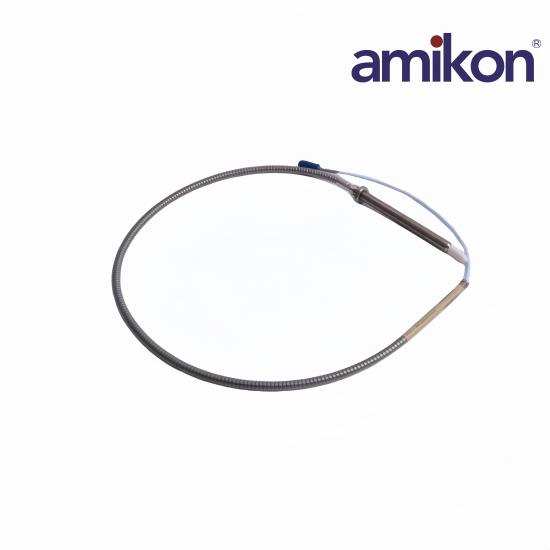

The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.You can also order 3300 XL 8 mm probes and extension cables with an optional FluidLoc cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.The 3300 XL probe, extension cable, and Proximitor sensor have corrosion-resistant, gold-plated ClickLoc connectors. These connectors require only finger-tight torque (the connectors will "click" when tight), and the specially-engineered locking mechanism prevents the connectors from loosening. These connectors require no special tools for installation or removal.The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, line ar range,accuracy, and temperature stability. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space 6,7.The 3300-series5 mm probe (refer to Document 141605) uses smaller physical packaging, but does not reduce the side view clearances or tip-to-tip spacing requirements as compared to an 8mm probe. It is used when physical (not electrical) constraints preclude the use of an 8 mm probe.
