The 3300 NSv probe is available in several configurations, including armored and unarmored cases with probe threads of 1/4-28, 3⁄8-24, M8X1, and M10X1. The reverse mount version comes standard with either 3⁄8-24 or M10X1 threads. The transducer system's components feature gold-plated brass ClickLoc connectors, which lock securely into place to prevent the connection from loosening. The TipLoc molding method ensures a strong bond between the probe tip and its body. Additionally, Bently Nevada’s CableLoc design provides 220 N (50 lb) of pull strength to securely attach the probe cable.

It is recommended to use connector protectors for both the probe-to-extension cable connection and the cable-to-Proximitor Sensor connection. These protectors help prevent liquids from entering the ClickLoc connectors, which could otherwise negatively impact the electrical signal.

Notes:

Proximitor Sensors are factory calibrated to AISI 4140 steel by default, but calibration to other target materials is available upon request.

Silicone tape is provided with each 3300 NSv extension cable and can be used as an alternative to connector protectors. However, silicone tape is not recommended for applications where the probe-to-extension cable connection will be exposed to turbine oil.

Frequently Asked Questions

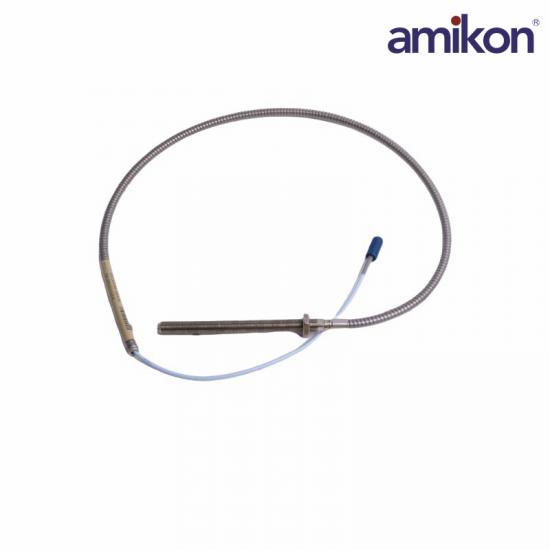

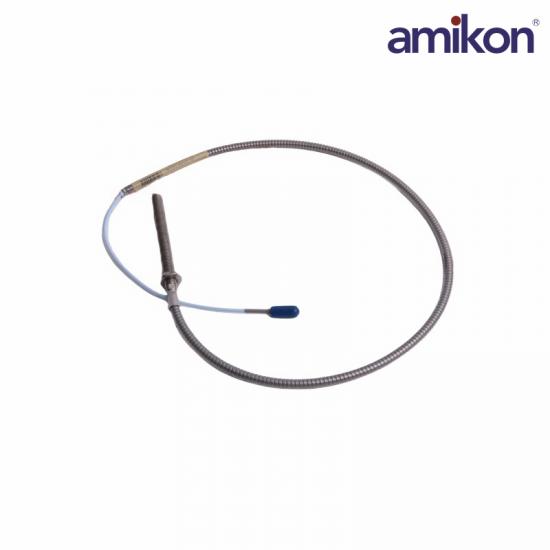

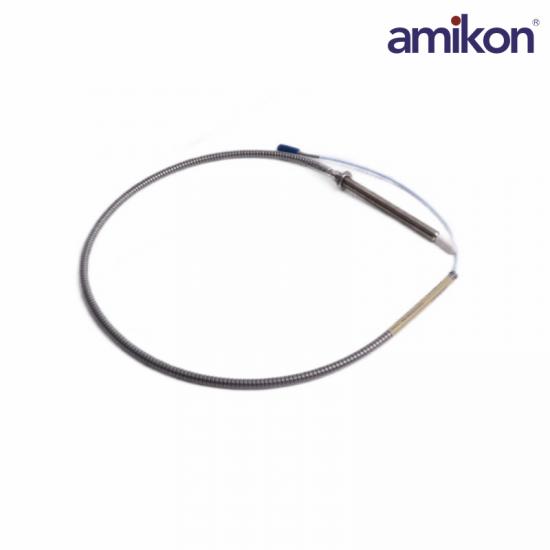

Q1: What is the Bently Nevada 330910-00-25-10-02-00 Proximity Probe used for?

A: The 330910-00-25-10-02-00 is a non-contact proximity probe used for monitoring shaft vibration, shaft position, and displacement in rotating machinery. It is commonly installed in machinery protection and condition monitoring systems.

Q2: What does the "25" option indicate in this 330910-00-25-10-02-00 model number?

A: The 25 option specifies an overall case length of 250 mm, making the probe suitable for applications that require an extended probe body and deeper mounting configurations.

Q3: What is the total system length of the 330910-00-25-10-02-00 probe?

A: The -10 option indicates a total system length of 1.0 meter (39 inches), providing flexibility for installation and cable routing.

Q4: What power supply is required for the 330910-00-25-10-02-00?

A: The 330910-00-25-10-02-00 probe requires a power supply voltage between -17.5 VDC and -26 VDC for proper operation.

Product Applications

Compressor manufacturing and maintenance plants: Centrifugal air compressors, refrigeration compressors, process gas compressors

Petrochemical and oil refineries: High-speed light-duty turbines, various small industrial pumps, fans.

Power and energy plants: Small and medium-sized steam turbines, auxiliary feedwater pumps.
