The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems. It is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 51 mm (2 in) or axial position on flattargets smaller than 15 mm (0.6 in). It is primarily used in thefollowing applications on fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

The 3300 XL NSv Transducer System design allows it toreplace both the 3300 RAM Transducer Systems and the3000-series or 7000-series 190 Transducer System. Upgradesfrom the 3300 RAM system to the 3300 XL NSv system mayuse the existing probe, extension cable, and monitoring system with 3300 XL NSv ProximitorSensor. Upgrades from the 3000-series or7000-series Transducer System must replacethe probe, extension cable, and ProximitorSensor with NSv components.

Frequently Asked Questions

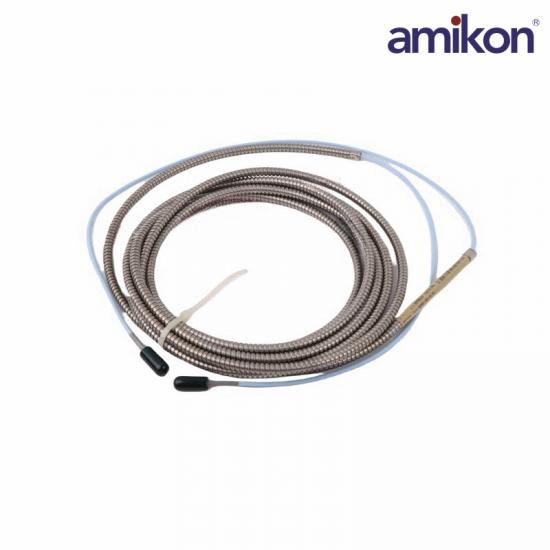

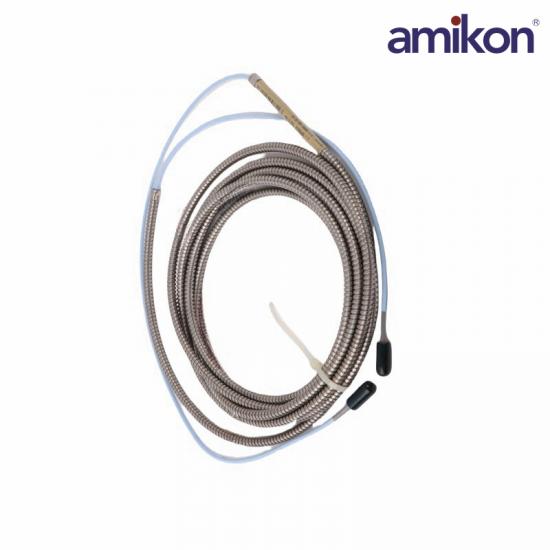

What is the 330930-040-02-CN?

It is a premium extension cable manufactured by Bently Nevada for the 3300 NSv and 3300 XL proximity transducer systems.

What does the "040" part of the model number mean?

It specifies that the total physical length of this extension cable is 4.0 meters (13.1 feet).

What is the characteristic impedance of this cable?

It features a tuned standard characteristic impedance of 75 Ohms (Ω).

What is the total system length when using this cable?

It is typically paired with a 1.0-meter or 0.5-meter probe to create a calibrated 5.0-meter total system length.

Product Applications

Oil and Petrochemical Industry: Used to monitor the rotational status of large fluid dynamics bearings, process gas compressors, and pumps.

Power and Power Plants: Primarily responsible for monitoring shaft vibration, shaft displacement, and key phase in small and medium-sized steam turbines, hydro turbines, and generator sets.

Iron and Steel Metallurgy: Deployed in blast furnace blowers, converter tilting mechanisms, rolling mill bearings, and related power station units. Its stainless steel armor design (represented by "02") effectively protects against flying metal debris and mechanical abrasion.
