Description：

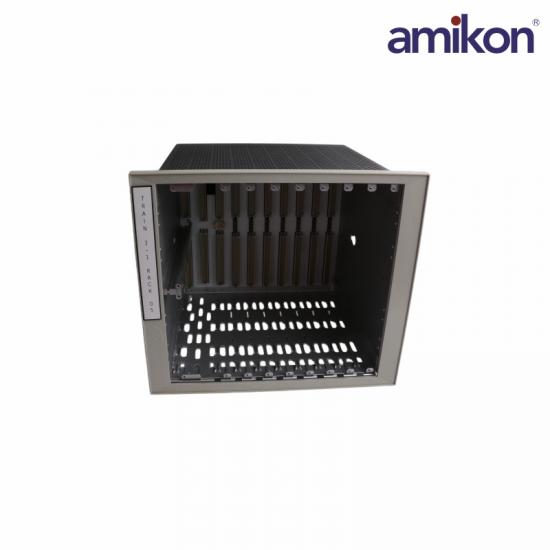

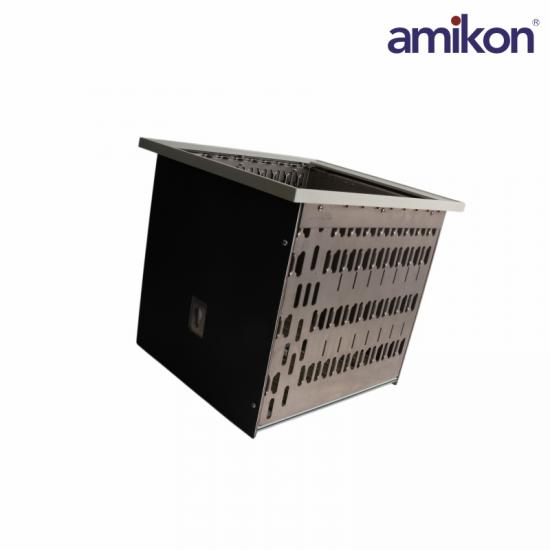

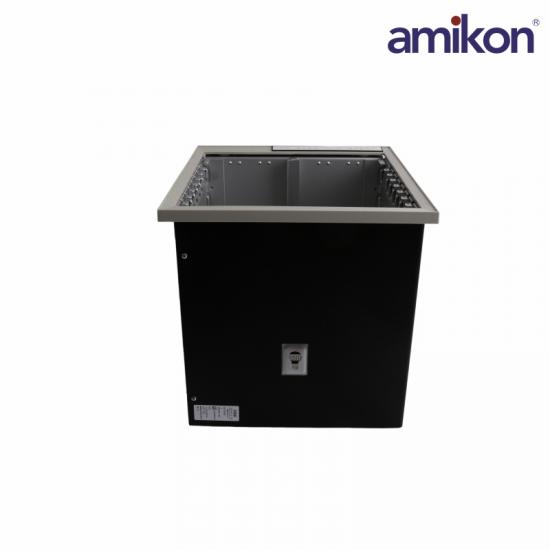

The Bently Nevada 3500/05-02-05-00-00-00 System Rack serves as the central housing for the Bently Nevada 3500Machinery Protection System. It provides power and communication pathways for monitoring critical machinery,ensuring reliable and efficient operation.

The 3500 System provides continuous, online monitoring suitable formachinery protection applications, and is designed to meet therequirements of the American Petroleum Institute's API 670 standardfor such systems. The system's modular rack-based design includesthe following components:

3500/05 Instrument Rack (required)

One or two 3500/15

Power Supplies (required)

3500/22M Transient Data Interface (TDI) Module (required)

One or more 3500/XX Monitor Modules (required)

One or more 3500/32M (4-channel) or 3500/33 (16-channel)Relay Modules (optional)

One or two 3500/25 Keyphasor* Modules (optional)

One or more 3500/92 Communication Gateway Modules(optional)

Input/Output (1/O) Modules (required)

3500/94M VGA Display (optional)

Internal or external intrinsic safety barriers, or galvanic isolatorsfor hazardous area installations (optional)

3500 System Configuration Software (required)

Specification：

Frequently asked questions

Q1: What is the Bently Nevada 3500/05-02-05-00-00-00 System Rack used for?

A1: It is used to house and interconnect monitoring modules in the Bently Nevada 3500 machinery protection and condition monitoring system.

Q2: What is the 3500/05-02-05-00-00-00 input voltage requirement of the rack?

A2: The rack operates with a 24 VDC input voltage.

Q3: What is the 3500/05-02-05-00-00-00 operating temperature range?

A3: The 3500/05-02-05-00-00-00 operating temperature range is -40°C to +70°C.

Q4: How much power does the 3500/05-02-05-00-00-00 system rack consume?

A4: The 3500/05-02-05-00-00-00 power consumption is 10 Watts.

Q5: What are the advantages of the 3500/05 System Rack?

A5: It provides reliable module integration, robust system communication, and stable operation in industrial environments.

Product Applications

Power plants: Large steam turbines, gas turbines, generators, feedwater pumps, and high-power blowers in thermal power plants, nuclear power plants, and gas turbine power plants.

Oil and gas: Large centrifugal compressors, reciprocating compressors, and high-pressure hydrocarbon pumps in hydrocracking and catalytic cracking units.

Steel plants: Blast furnace blowers, blast furnace gas residual pressure power generation (TRT) units, large rolling mills, and air separation units.

Mineral processing plants and cement plants: Large ball mills, semi-autogenous mills, large ventilation fans, and conveyor belt drive motors.
