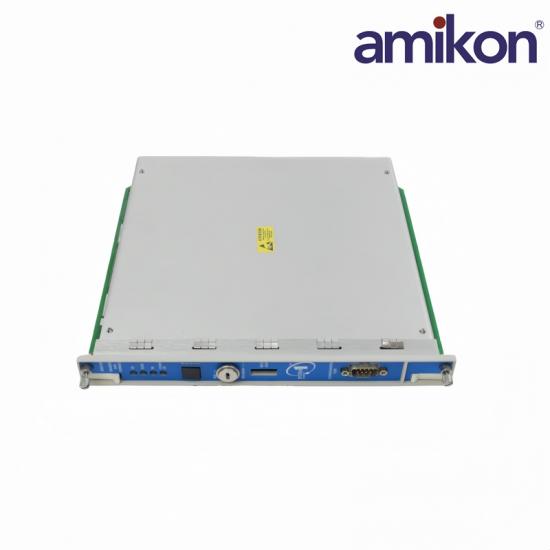

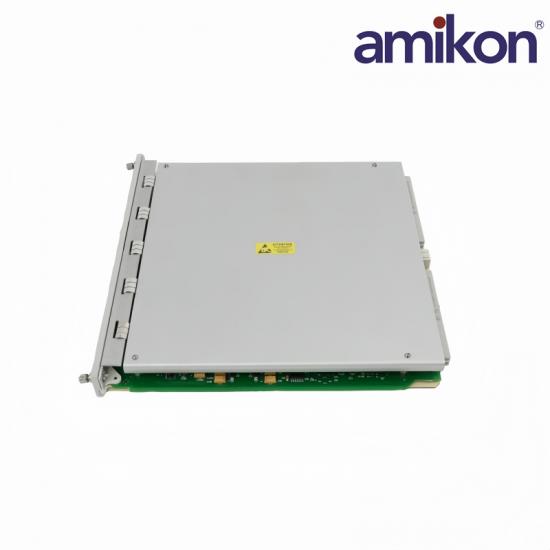

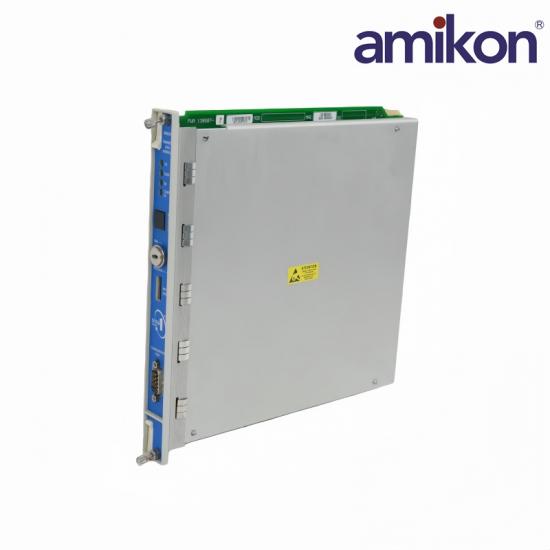

Bently Nevada 3500-22M 138607-01 Standard Transient Data Interface Module

3500-22M 138607-01
3500-22M 138607-01
3500-22M 138607-01

Bently Nevada 3500-22M 138607-01 Standard Transient Data Interface Module

✉  INQUIRE NOW

BENTLY NEVADA · 3500 Machinery Protection System

3500-22M 138607-01

Standard Transient Data Interface Module

MANUFACTURERBently Nevada
MODEL3500-22M 138607-01
PART NUMBER3500-22M 138607-01
PRODUCT TYPEStandard Transient Data Interface Module
SYSTEM FAMILY3500 Machinery Protection System
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    3500-22M 138607-01

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Bently Nevada

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

Bently Nevada 3500 Machinery Protection System

3500-22M 138607-01

Price and Availability Inquiry

Part number 138607-01 identifies the legacy standard 3500/22M Transient Data Interface main module for 3500 rack communication and transient-data collection.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 3500-22M 138607-01 and required quantity in your inquiry.

Bently Nevada 3500-22M 138607-01

Technical Specifications

Verified identity, configuration, performance, installation and ordering data for the exact supplied reference.

01Product IdentityExact legacy spare identification
ManufacturerBently Nevada
Order number3500-22M 138607-01
Part number138607-01
Product designationStandard TDI main module
02CommunicationTDI main-module functions
Front configuration portUSB-B
Maximum baud rate115.2 kbaud
USB cable length5 m (16.4 ft) max
Copper link length100 m (328 ft) max
03Data & ControlsMonitoring integration
Power consumption10.5 W
Waveform collectionUp to 48 channels
Keyphasor supportFour 3500 system signals
Rack address range127 selectable addresses
04Physical & EnvironmentMain module ratings
Dimensions241.3 × 24.4 × 241.8 mm
Weight0.91 kg (2.0 lb)
Operating temperature−30 to +65 °C
Storage temperature−40 to +85 °C

Bently Nevada 3500-22M 138607-01 Product Support

Frequently Asked Questions

Practical compatibility, configuration, installation, commissioning and ordering guidance for 3500-22M 138607-01.

01

What does part number 138607-01 identify?

It identifies the earlier standard, non-TMR 3500/22M TDI main module rather than the rear Ethernet I/O module.

02

Is an I/O module included automatically?

Not unless stated in the quotation. Match the main module with the required TDI I/O part and interface type.

03

Where is 138607-01 installed?

It occupies the full-height front Slot 1 position next to the 3500 rack power supplies.

04

Which software communicates through the TDI?

The module interfaces the rack with System 1 condition-monitoring software and 3500 configuration software.

05

What must be checked during a RIM upgrade?

Remove the old RIM and RIM I/O, confirm M-series monitor compatibility, then install the matching TDI I/O before the TDI.

06

Does this part provide machinery trips?

The TDI transfers and collects data but is not part of the rack’s critical automatic-protection path.

07

What information is needed for replacement ordering?

Provide the 138607-01 label, hardware revision, rack firmware, existing rear I/O part and required network medium.
